Alpha 6000 - 5.5 Analog and Pulse Function (Group P4)

Chapter 5 Parameter Introductions
117
Operating Freq.(Hz)
Frequency
upper limit
FDTH
Time
FDTL
Frequency
lower limit
FDTH Delay time
FDTL Delay time

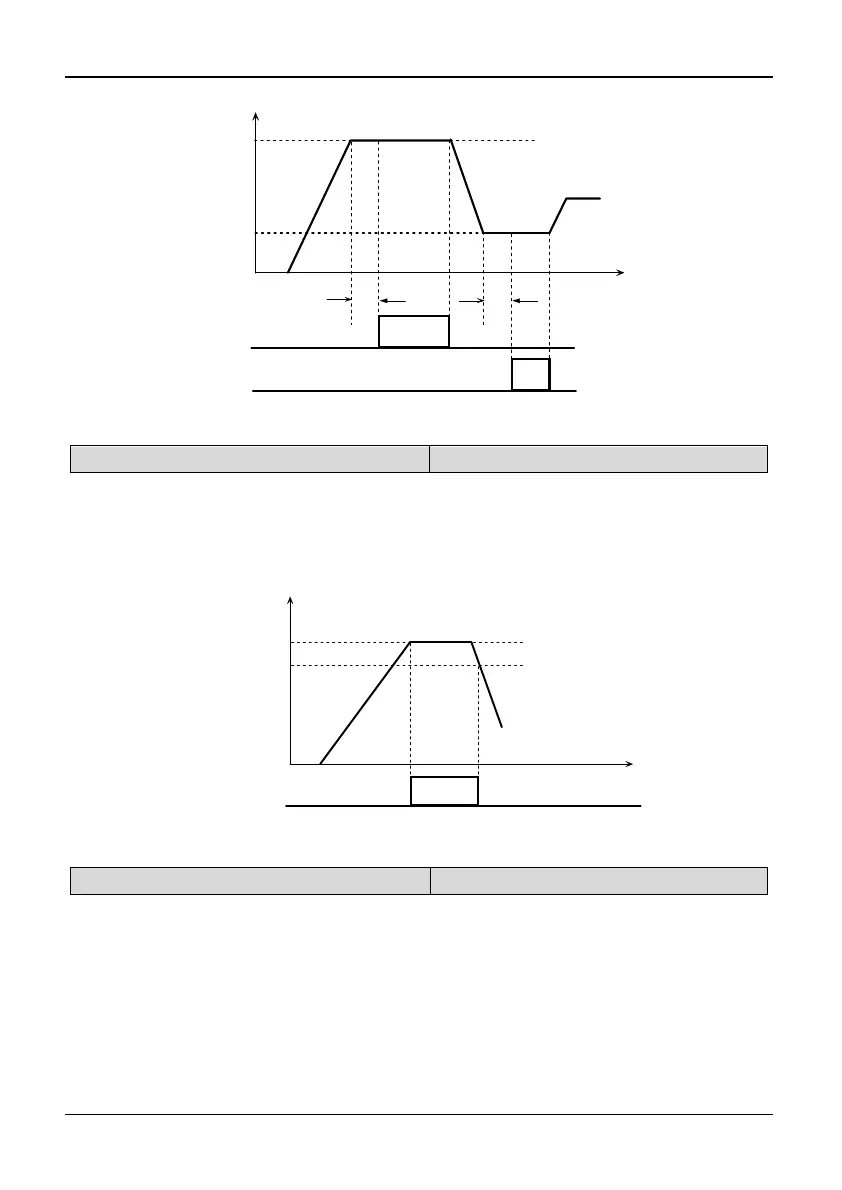

Fig. 5-3-10 FDTH/FDTL diagram
P3.23 Torque detection reference
Range: 0.0~200.0%【100.0%】
Note:
 If motor torque is equal to or more than the range of torque detection reference, the
output of terminal is valid. If the motor torque is less than 80% of reference, the
output of terminal is invalid, as shown in Fig. 5-3-11.
Output torque
Torque detection
reference
Torque arriving
detection signal
Time
Torque detection
reference*80%
Torque arriving
detection
Fig. 5-3-11 Torque arriving detection threshold
P3.24 Preset Count value
Range: 0~9999【0】
Note:
 If the counting value is bigger than the value defined by P3.24, the output of
terminal is valid, as shown in Fig. 5-3-12.
