Alpha 6000 - 3400 G~3500 G Main Circuit Wiring; 3160 G;3185 P~3500 G Main Circuit Terminals Function

Chapter 2 Installation and Wiring
14

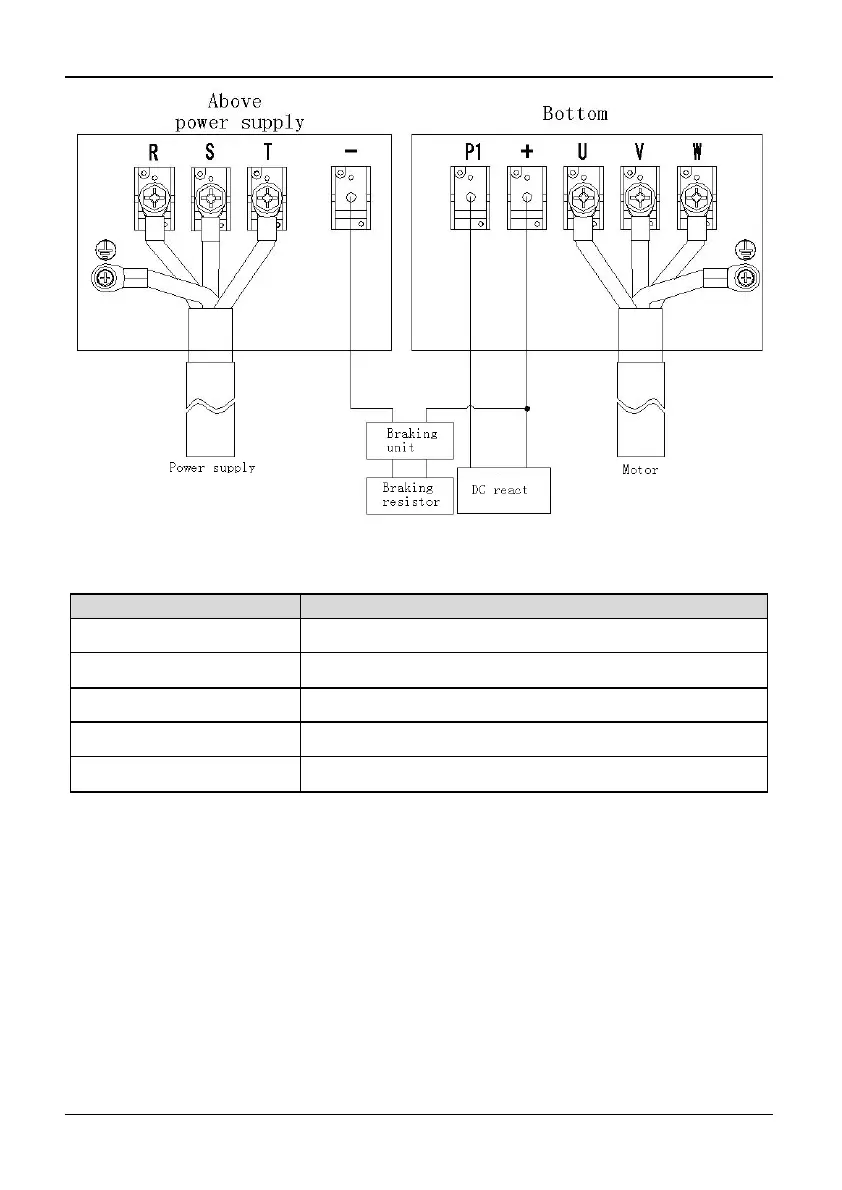

Fig. 2-8 3400G~3500G Main Circuit Wiring
Table 2-6 3160G/3185P~3500G main circuit terminals function
Terminal Function
R, S, T Three-phase 380V AC supply input terminals
P1,+ Terminals for an external DC reactor
- DC negative bus output terminals
U, V ,W Three-phase AC output terminals
PE Earth terminal
Attention: When DC reactor is not connected, please short “P1” and “+/B1” with
supplied copper bar.
