Chapter 2 Installation and Wiring
13
Table 2-5 3018G/3022P~3055G/3075P main circuit terminals function
Terminal Function
R, S, T Three-phase 380V AC supply input terminals
P1,+ Terminals for an external DC reactor
- Terminal for an external DC negative bus
U, V, W Three-phase AC output terminals
PE Earth terminal
Attention: When DC reactor is not connected, please short “P1” and “+/B1” with
supplied copper bar.

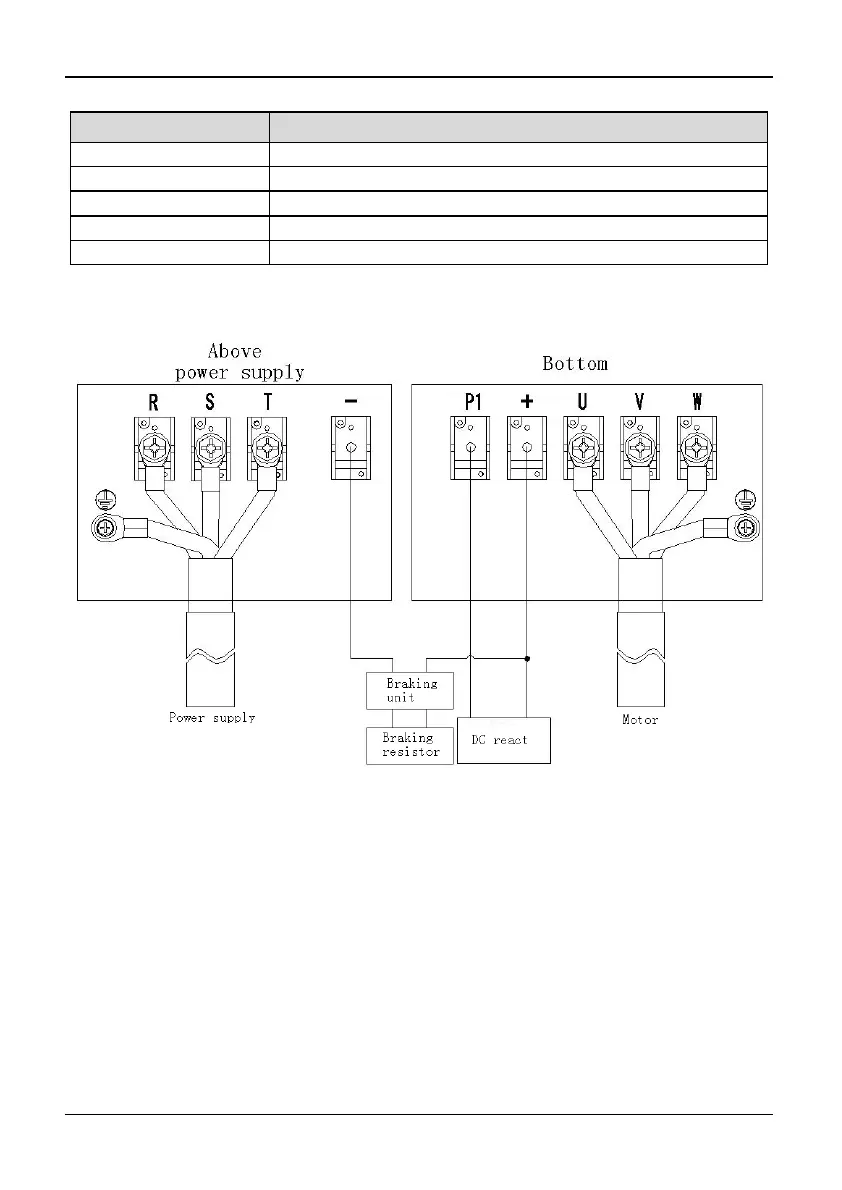

Fig. 2-7 3160G/3185P~3355G/3400P Main Circuit Wiring
