Coupling and uncoupling the machine
3. Open the tractor lower link securing device, i.e. it must be ready
for coupling.
4. Align the lower link hooks so that they are flush with the linking
points of the machine.
5. Direct people out of the danger area between the tractor and
machine before you approach the machine with the tractor.
6. Drive the tractor in reverse up to the machine so that the lower
link hooks of the tractor automatically pick up the ball of the ma-
chine.
→ The lower link hooks lock automatically.
7. Check whether the securing device of the tractor's lower link
locking system is closed and secured (see tractor's operating
manual).
8. Lift the tractor's lower link until the sustainer (Fig. 105/1) is free
of the ground.
9. Secure the tractor against unintentional starting and unintention-
al rolling away.
10. Check whether the PTO shaft of the tractor is switched off.
11. Apply the tractor parking brake, switch off the tractor engine and
remove the ignition key.
12. Connect the supply lines to the tractor.

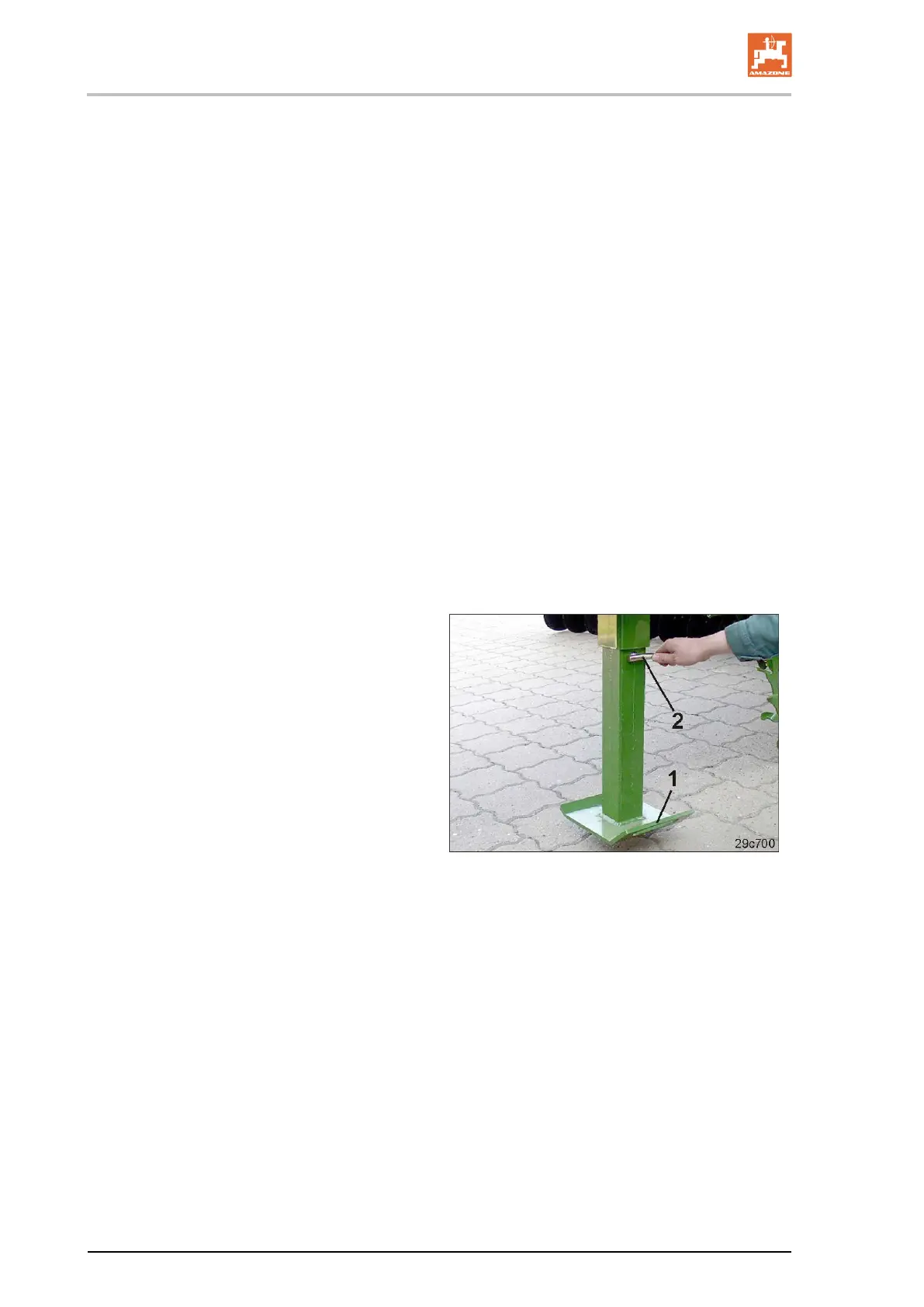

13. Hold the sustainer (Fig. 105/1) tight and
remove the positioning bolt (Fig. 105/2).
14. Push up the sustainer by the handle (Fig.
105/1) and position it with the positioning
bolt.
15. Secure the positioning bolt with a linch pin.
105
106 Cirrus BAH0049-1 09.14
