Coupling and uncoupling the machine
7.3 Coupling the hydraulic pump (optional)
WARNING
Risk of crushing from tractor and machine unintentionally start-
ing up or rolling away!
Only couple/uncouple the hydraulic pump and tractor universal joint
shaft if the tractor and machine are secured to prevent unintentional
starting and rolling.
7.3.1 Connecting the hydraulic pump
1. Disengage the tractor's universal joint shaft, engage the parking
brake, shut off the engine and remove the ignition key.
2. Clean and grease the tractor's universal joint shaft.
3. Couple the tractor and machine.
4. Secure the tractor against unintentional starting and unintention-
al rolling away.

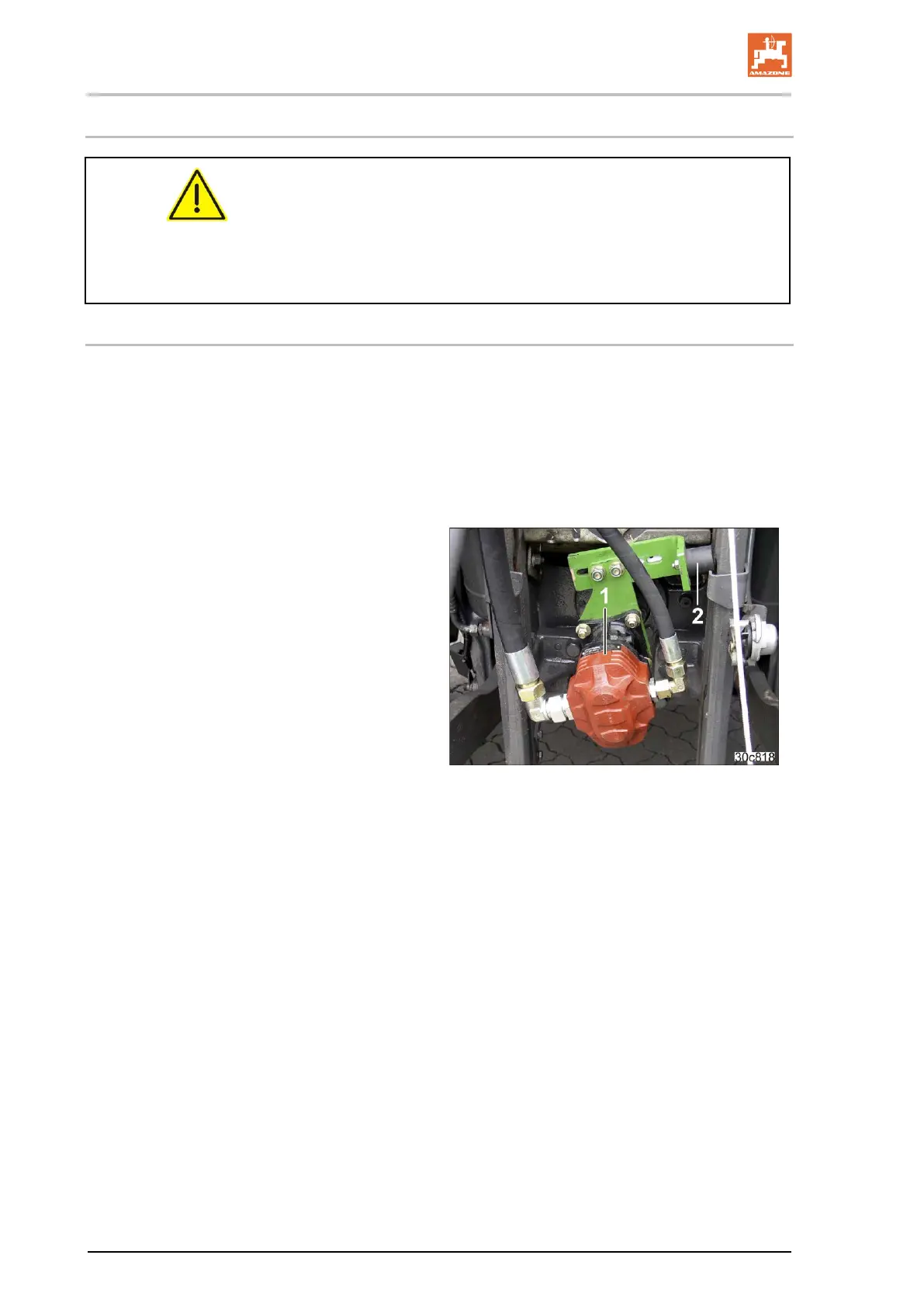

5. Couple the hydraulic pump (Fig. 115/1) to
the tractor's universal joint shaft.
The hydraulic pump is equipped with a QC
fastener. Make sure that the QC fastener
has engaged correctly.
6. Set the adjuster segment so that the buffer
(Fig. 115/2) rests against it.
115
114 Cirrus BAH0049-1 09.14
