Cleaning, maintenance and repairs
12.4.2.2 Lubricating the lubrication nipples when the machine is folded out and lowered
1. Fold the machine extension arm in.
2. Raise the machine by moving the integrated running gear out
completely.
3. Apply the tractor parking brake, switch off the tractor engine and
remove the ignition key.
4. Secure the raised machine.
5. For lubrication intervals, refer to the table (Fig. 199).

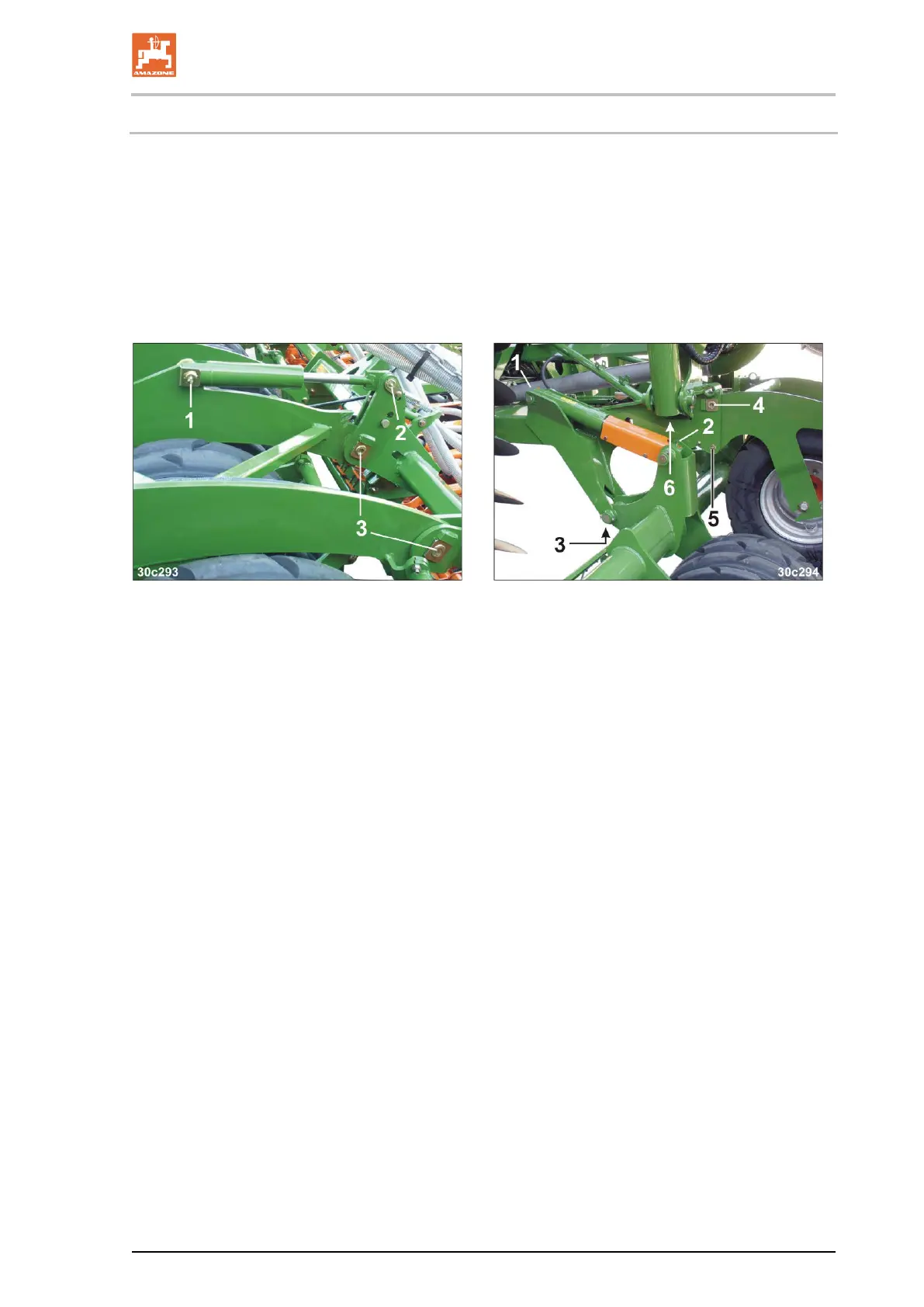

Fig. 203
Fig.
204
Cirrus BAH0049-1 09.14
183
