Amazone Cirrus Series - Overview - Supply Lines between the Tractor and the Machine

Product description
4.3 Overview – Supply lines between the tractor and the machine

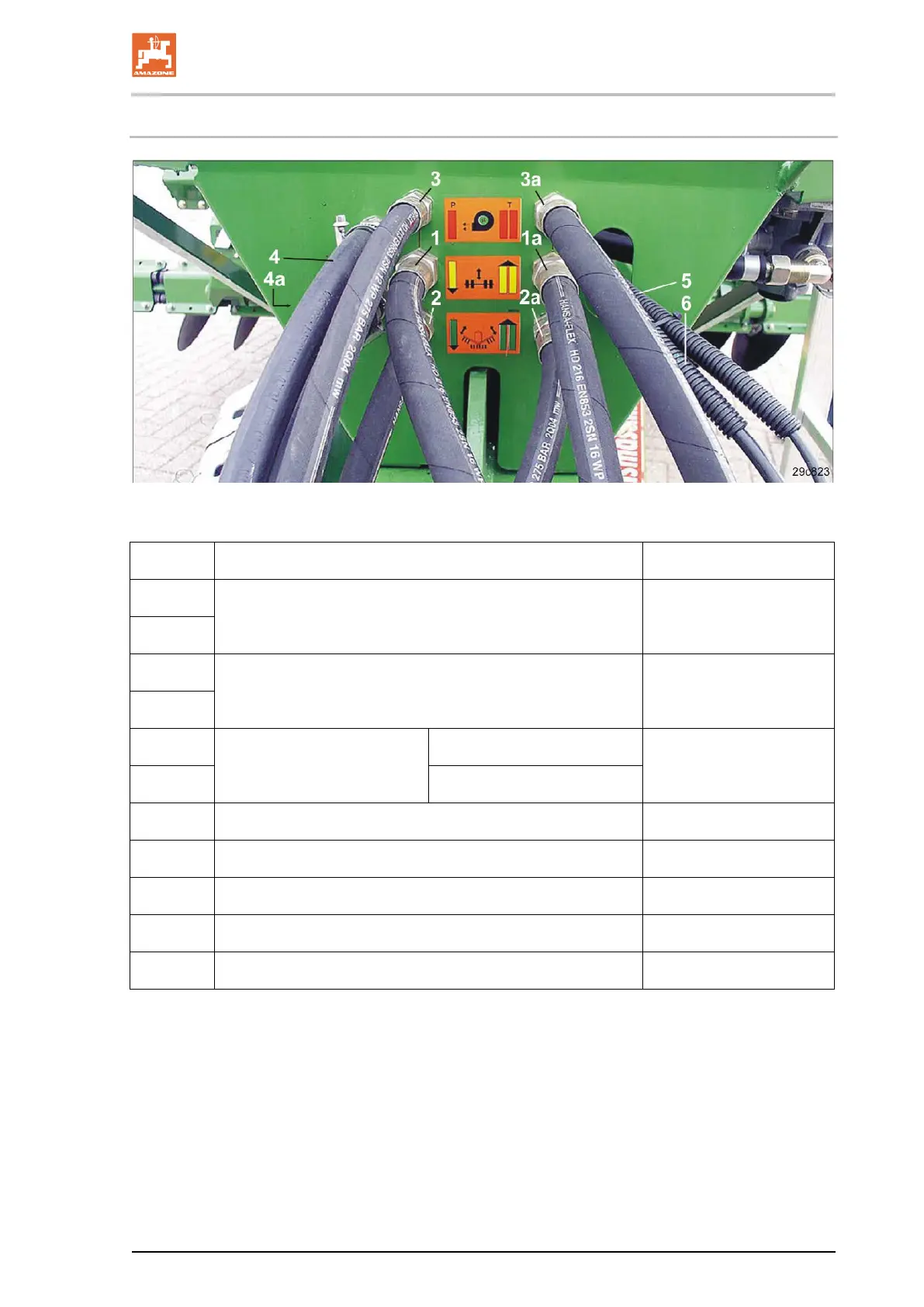

Fig. 37
Fig. 37/… Designation Marking
(1)
Hydraulic line 1 yellow
(1a)
(2)
Hydraulic line 2 green
(2a)
(3)
Hydraulic line 3
Pressure line with priority
red
(3a) Pressureless line
(4) Brake line (compressed air) yellow
(4a) Supply line (compressed air) red
(5) Plug (7-pin) for the road traffic lighting system
(6) Implement plug for on-board computer AMATRON 3
No Fig. Hydraulic brake line
1)
1)
not permitted in Germany and some other EU countries
