Amazone Cirrus Series User Manual

Structure and function
1. Swivel the actuation lever on the control
valve on the tractor to float position (neutral
position).
2. Clean the hydraulic connectors of the hy-
draulic hose lines before you couple the hy-
draulic hose lines to the tractor.
3. Connect the hydraulic hose line(s) to the
tractor control unit(s).

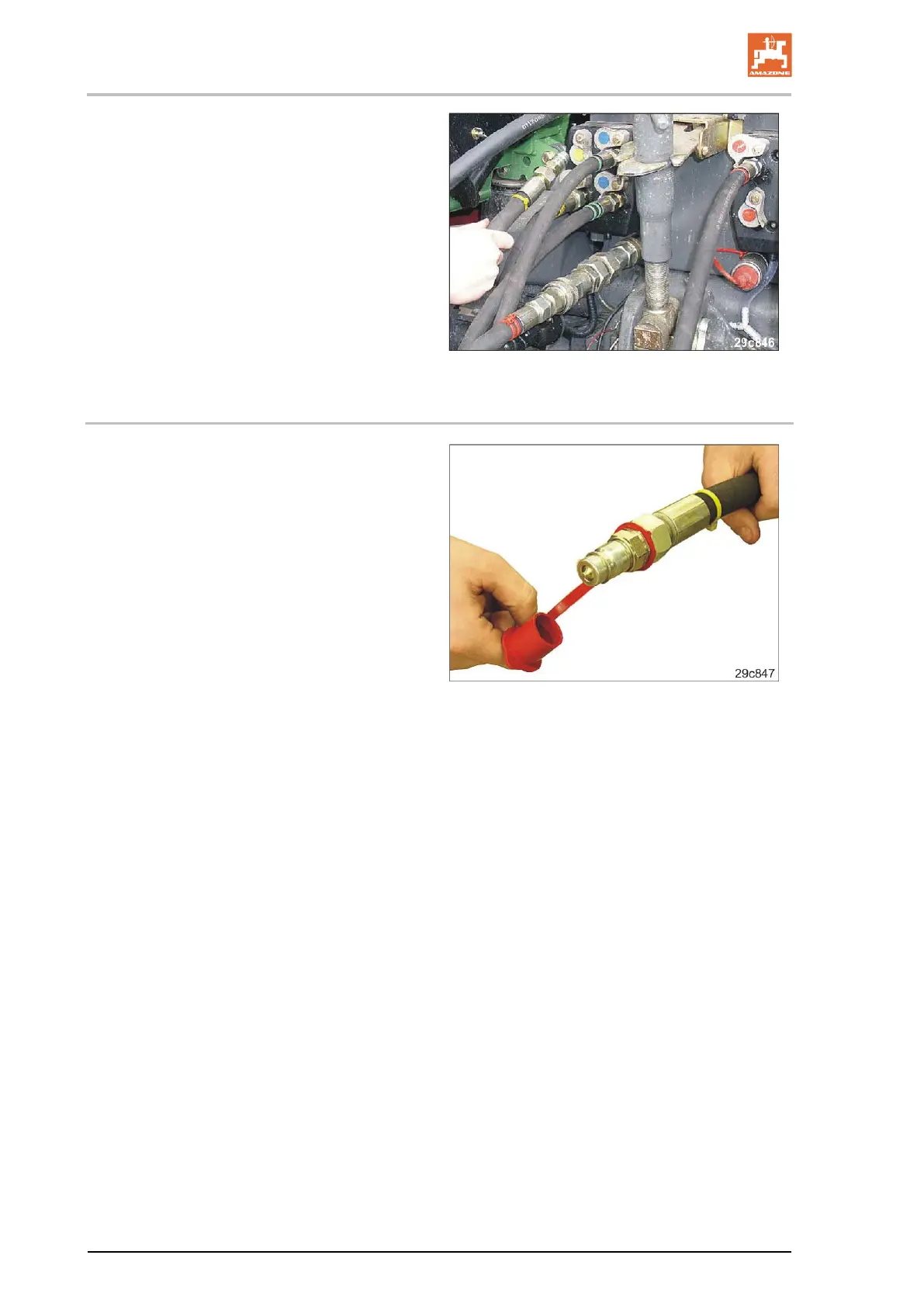

Fig.
48
5.2.2 Uncoupling the hydraulic hose lines
1. Swivel the actuation lever on the control
valve on the tractor to float position (neutral
position).
2. Unlock the hydraulic connectors from the
hydraulic sockets.
3. Safeguard the hydraulic connectors and
hydraulic connector sockets against soiling
with the dust protection caps.
4. Place the hydraulic hose lines in the hose
cabinet.
Fig.
49
60 Cirrus BAH0049-1 09.14
