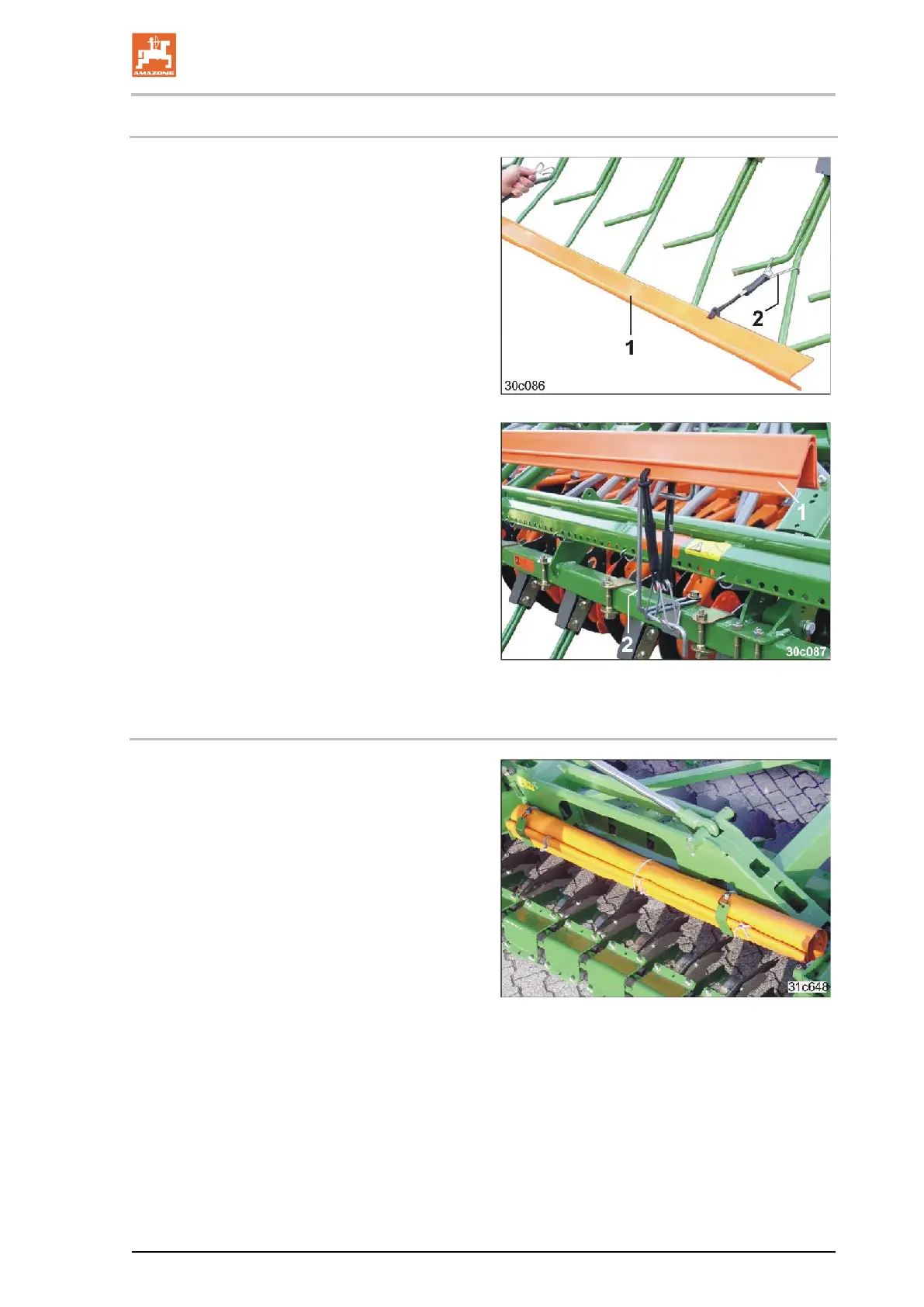

10.2 Removing the transport safety bar
Remove the road safety bar before using the
machine in the field
1. Release the spring holders (Fig. 170/2)
and remove the road safety bar (Fig.
170/1).
Fig. 170
2. Insert the two parts of the transport safety
bar (Fig. 171/1) into each other and secure
it on the transport bracket (Fig. 171/2) with
the spring holders.
Fig. 171
10.3 Secure the protective cover in the bracket
The foldable machines have a protective cover
(2 pieces) to cover the disc arrays when driving
on the road.
Before using the machine on the field, (Fig.
172)
• roll up the cover
• secure it in the bracket
• secure it using spring holders.
Fig. 172
Cirrus BAH0049-1 09.14
155
