8.8.3 Setting the length of the outer disc struts
In each disc row the length of the outer disc
struts is adjustable.

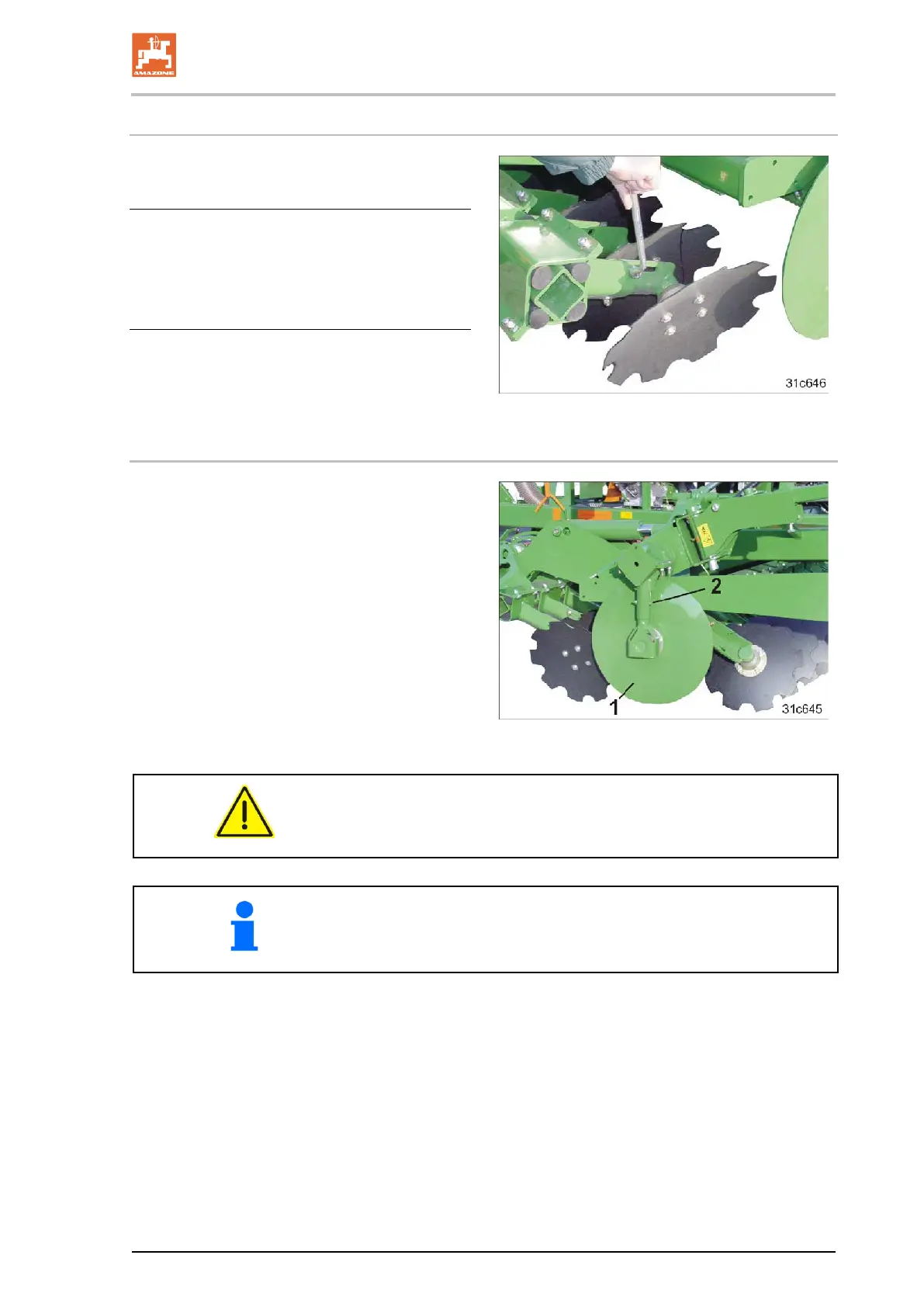

Fig. 139
• of the front row of discs, if the outer discs
are conveying too much soil outwards.
• of the rear row of discs, if the outer discs
are conveying too much soil inwards.
Firmly tighten the nuts after adjustment.
8.8.4 Adjusting the outside hollow discs
Adjust the outside hollow discs (Fig. 140/1) so
that they just contact the ground surface.
Tighten the screws (Fig. 140/2) firmly after ad-
justment.
Fig. 140
CAUTION
Danger of getting crushed when adjusting the outside hollow
discs.
The outside hollow discs of the Cirrus 3002 are folded inwards for
transport.
Cirrus BAH0049-1 09.14
133
