Amazone Cirrus Series User Manual

Cleaning, maintenance and repairs
12.4.2.1 Lubricating the lubrication nipples when the machine is folded out and lowered
1. Fold the machine extension arms out.
2. Lower the machine by moving in the integrated running gear
completely.
3. Apply the tractor parking brake, switch off the tractor engine and
remove the ignition key.
4. For lubrication intervals, refer to the table (Fig. 199).

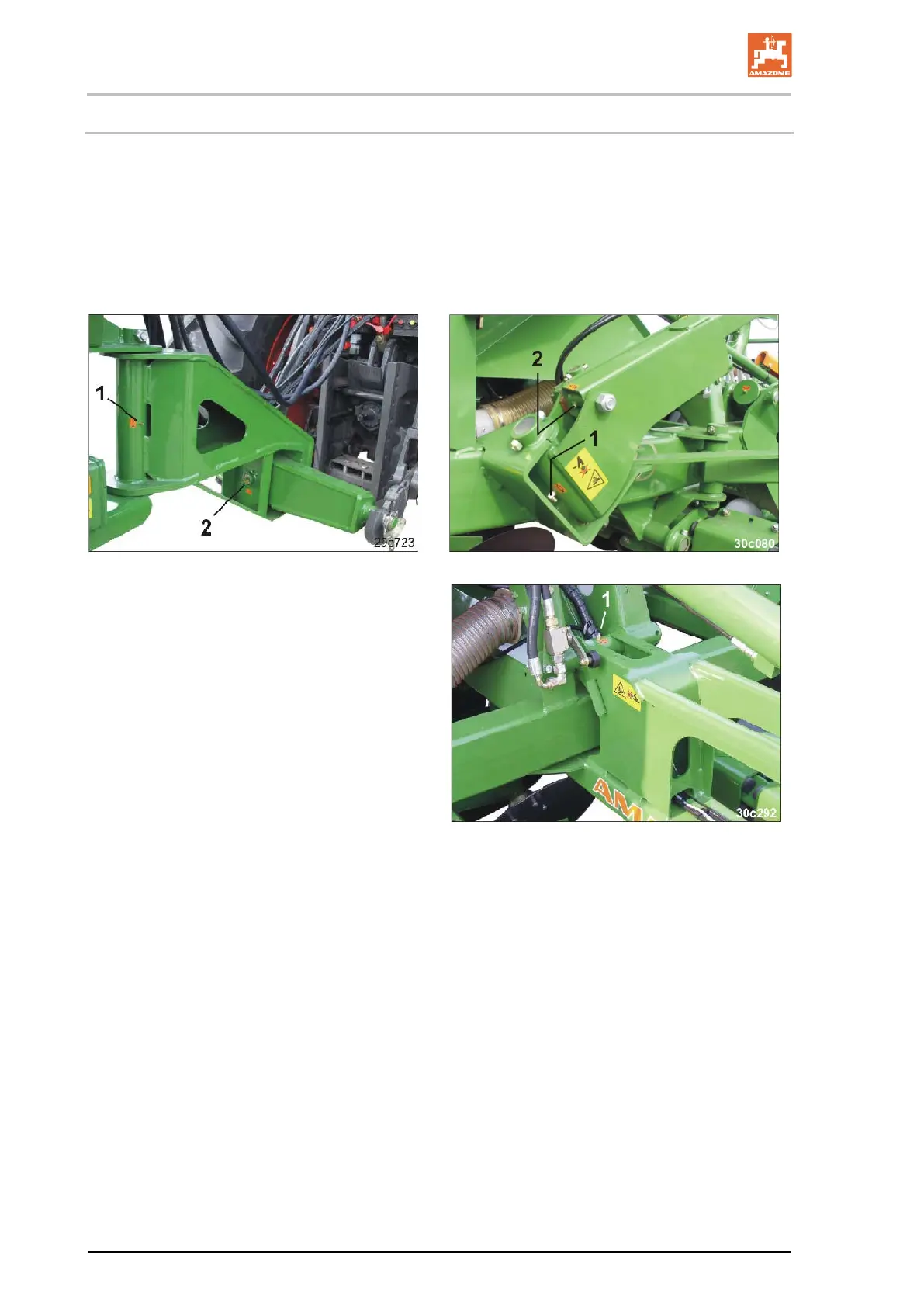

Fig. 200
Fig.
201
Fig. 202
182 Cirrus BAH0049-1 09.14
