8.4 Adjusting blower fan speed
This adjustment is not required if the blower fan is driven by the trac-
tor universal joint shaft.
Set the target blower fan speed (Fig. 71)
• via the tractor's flow control valve
• at the pressure relief valve of the blower fan hydraulic motor if
the tractor does not have any flow control valve.
In the AMATRON 3, set:
• the target blower fan speed
• the deviation from the target blower fan speed (as a percent-
age) at which the alarm should be triggered.
Fig. 125
126

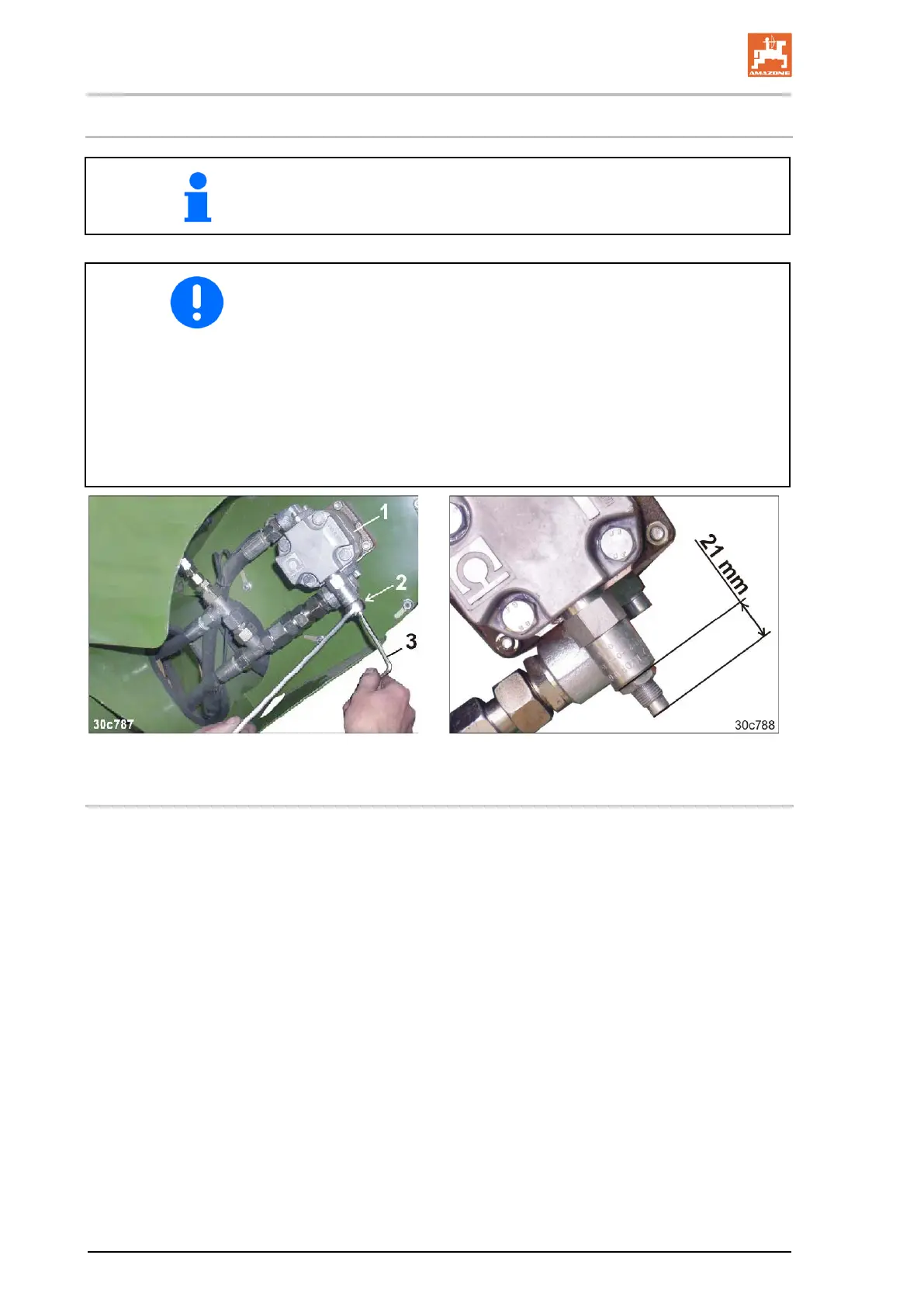

8.4.1 Setting the blower fan speed via the flow control valve of the tractor
1. Release the lock nut (Fig. 125/2).
2. Adjust the pressure relief valve (Fig. 125/1) to the factory-set
dimension "21 mm" (Fig. 126).
2.1 Turn the screw with the hexagon socket wrench (Fig.
125/3) accordingly.
3. Tighten the lock nut (Fig. 125/2).
4. Set the target blower fan speed on the flow control valve of the
tractor.
122 Cirrus BAH0049-1 09.14
