Amazone Cirrus Series User Manual

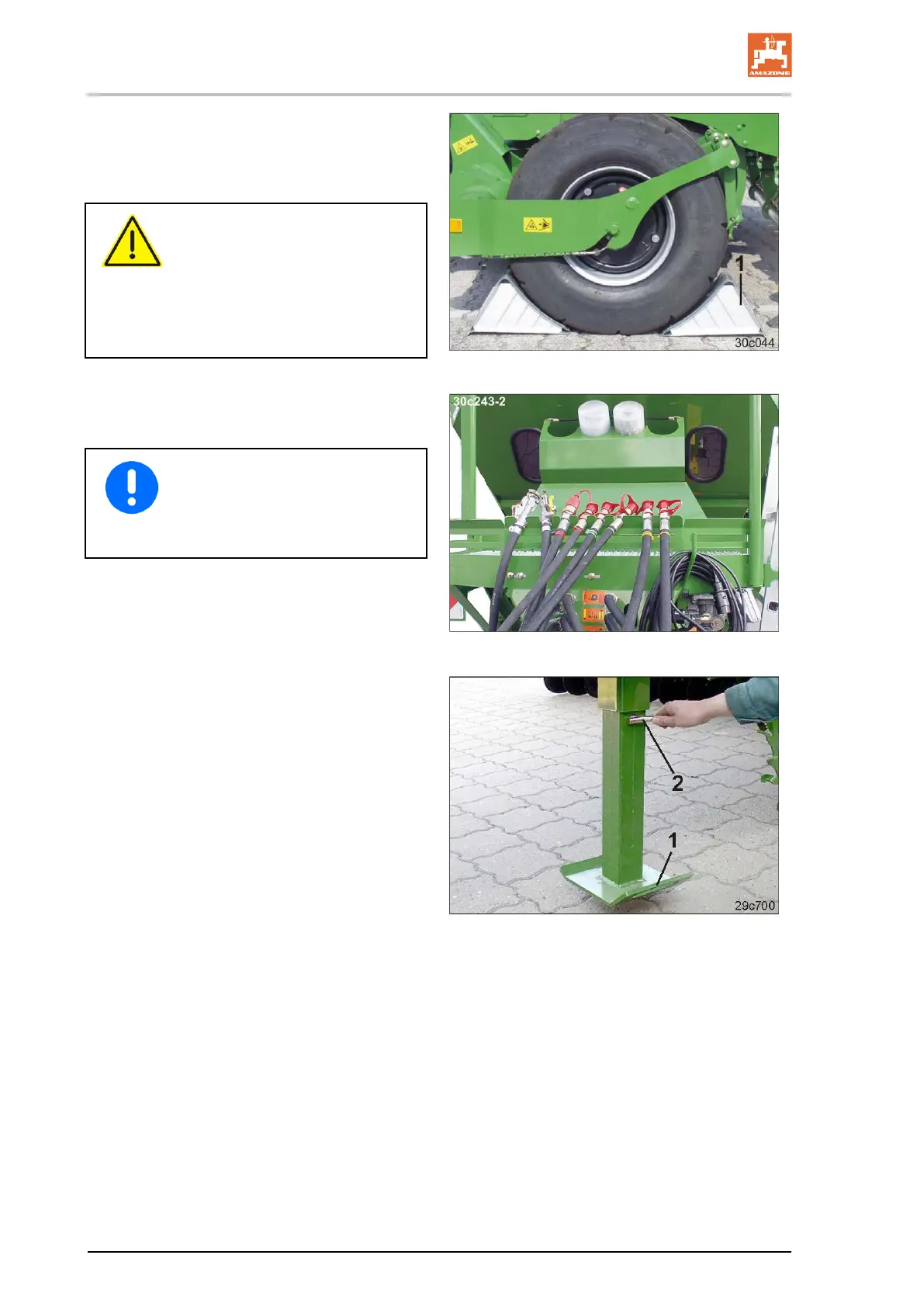

Coupling and uncoupling the machine
6. Secure the Cirrus on each side of the ma-
chine by placing 2 wheel chocks each (Fig.
110/1) under the outer tapered ring tyres.
Fig.
110
DANGER
Always secure the machine with
4 wheel chocks before yo
u un-
couple the machine from the
tractor! The wheel chocks r
e-
place the machine's parking
brake!
7. Uncouple all supply lines between the trac-
tor and the machine.
Fig.
111
When uncoupling the pneumatic
brake lines first of all disconnect the
red hose coupling (supply line) and
then the yellow hose coupling
(brake line) from the tractor!
8. Seal the hydraulic connectors and hose
couplings of the supply line and brake line
with protective caps.
9. Fasten all supply lines to the mountings
(Fig. 111).
10. Hold the sustainer (Fig. 112/1) tight and
remove the positioning bolt (Fig. 112/2).
11. Lower the sustainer and position it with the
positioning bolt.
12. Secure the positioning bolt with the linch
pin.
Fig.
112
112 Cirrus BAH0049-1 09.14
