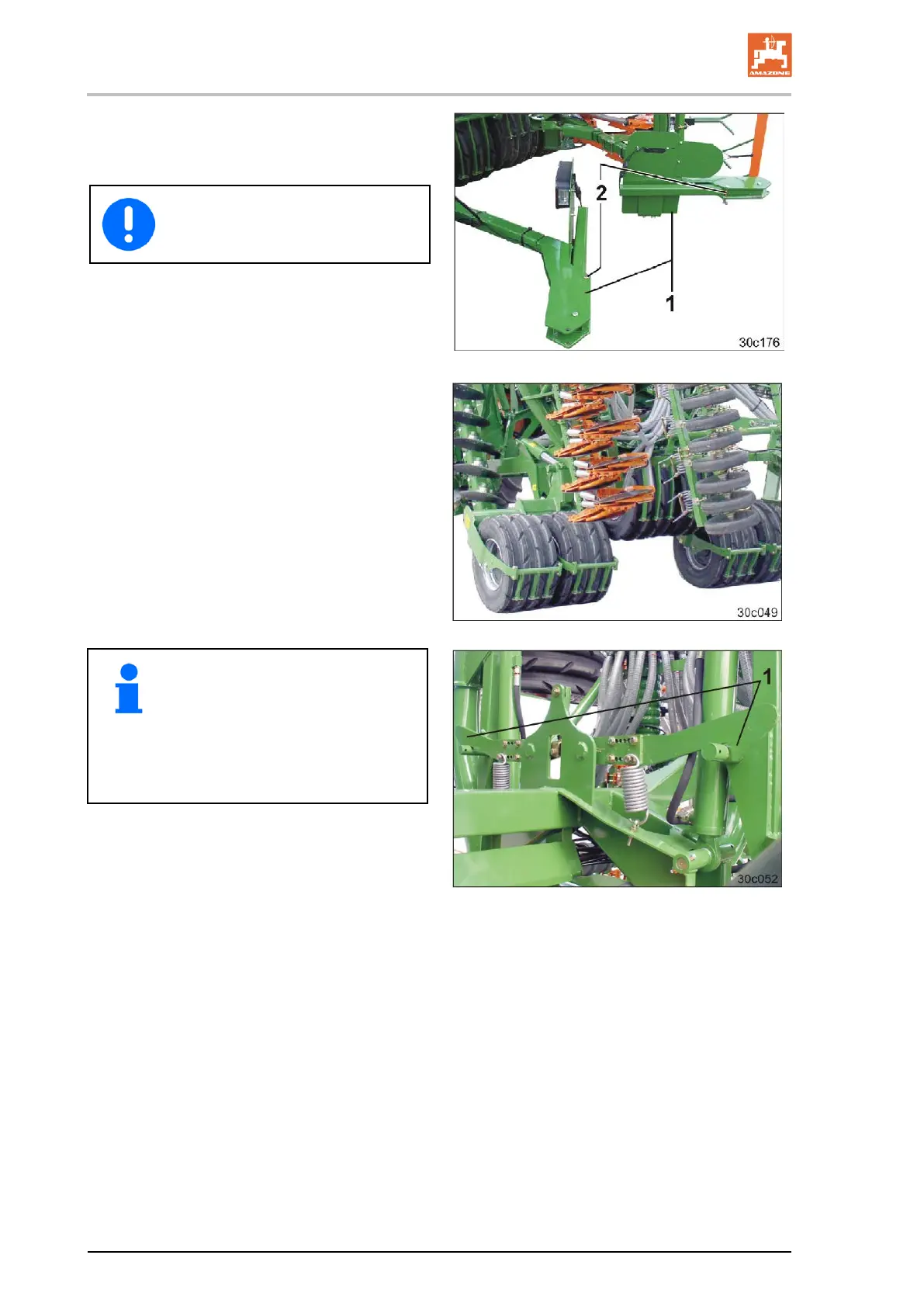

9. Fold in the lighting (Fig. 162/1), position it
with a pin (Fig. 162/2) and secure with a
clip pin.
Fig. 162
Fold in the lighting in order to prevent
damage when folding out the machine
extension arm.
10. Fold out the machine extension arms com-
pletely.
10.1 Actuate control unit green until the
machine extension arms are fully fold-
ed out.
10.2 Actuate control unit green for a further
3 seconds so that the hydraulic accu-
mulator (Fig. 221) is filled with hydrau-
lic fluid.
163
Fig. 164/1) open
ically before folding out the
green briefly on
"Fold in" and then again on "Fold
out", should the locking hooks no
t
164
11. Exit the "Folding" menu.
12. Put the Cirrus in its working position.
152 Cirrus BAH0049-1 09.14
