Working With Online Devices
118
NetLinx Studio (v2.4 or higher)
results of this status check are indicated in the Status tab of the Output Window (see
FIG. 24 on page 120).
 Devices: The elements below the Master Controller in the device tree represent devices in
the system. These elements indicate the device number, device name and the device
firmware version currently loaded (FIG. 23):
 Click the plus sign to expand the view to show sub-devices and ports on the Master.
 Sub-devices are indicated with red icons, and give a description and firmware
version info (in parenthesis) for each.
 Below the sub-devices is a listing of Ports on the Master. To check the status on any
port, right-click on a port and select Check Port Status from the context menu. The
results of this status check are indicated in the Status tab of the Output Window
(FIG. 24).
Device States
There are several possible "states" for devices listed in the online device tree:

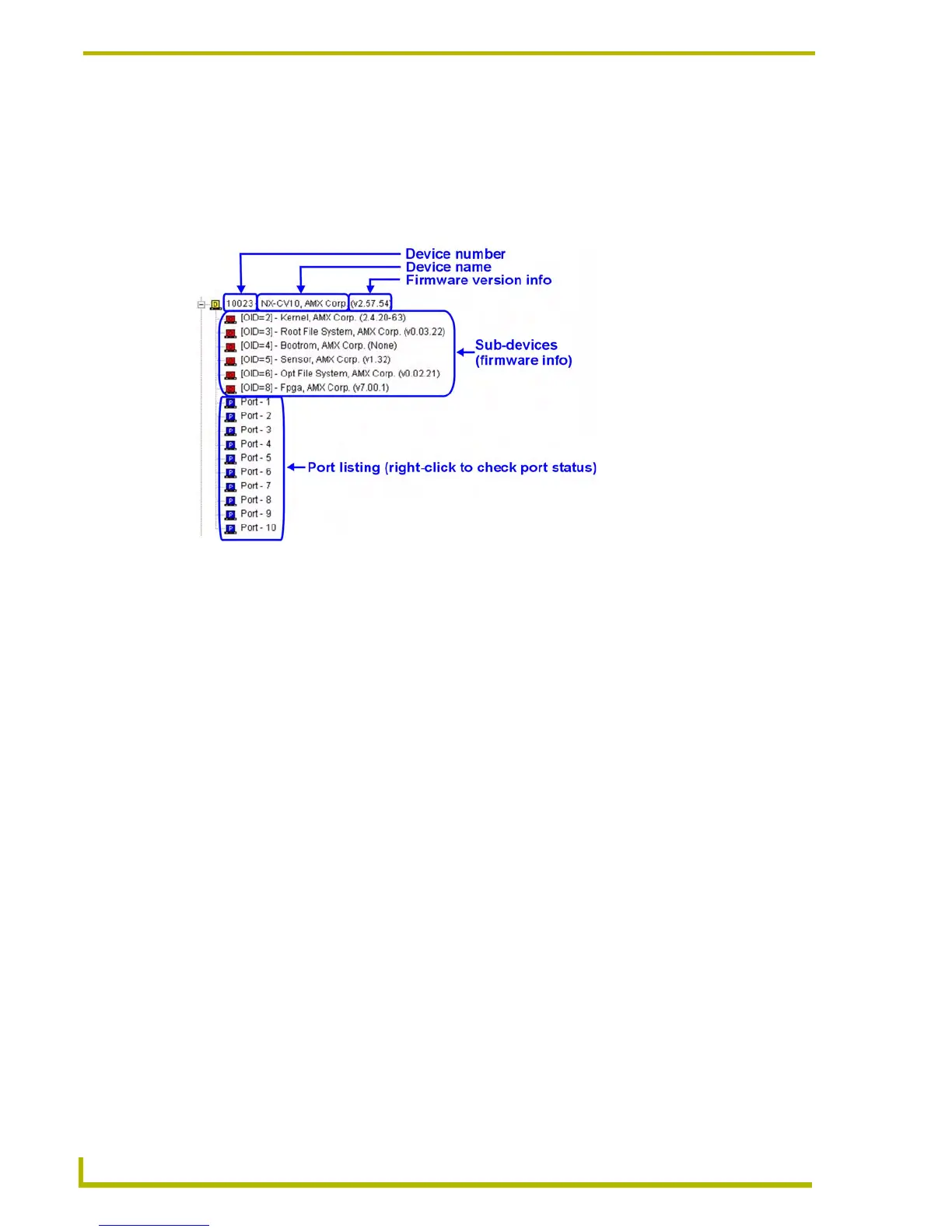

FIG. 23 Online Device Tree - Device element
• Unbound Device: An Unbound (or "Orphan") device is one that has not been bound to a
NetLinx Master. It may or may not have been assigned a Device Number. A
device will live in this state until it is explicitly bound to a master.
• Searching: A device is "Searching" if it has been bound to a NetLinx Master in the
past, but is not currently communicating with the Master.
After 10 minutes with no communication with the NetLinx Master, a
"Searching" device is moved into the "Lost" state.
•Lost: A device is "Lost" if it has been bound to a NetLinx Master in the past, but it
has not communicated with the Master for over 10 minutes.
