The NetLinx Studio v2.4 Work Area
5
N
etLinx Studio (v2.4 or higher)
The NetLinx Studio v2.4 Work Area
Overview
The NetLinx Studio work area contains the elements of the NetLinx Studio user interface.
Before jumping into a project, take a few moments to familiarize yourself with the main user
interface elements.
Title Bar
Displays the name of the application, and the name of the currently active file.
An asterisk (*) after the file name indicates that it contains unsaved changes.
Toolbars
There are eight toolbars in NetLinx Studio.
 Hover the mouse cursor over any toolbar button (for about one second) to display a"
tooltip" describing the button.
 Choose View > Toolbars to open the Toolbars sub-menu to view or hide the toolbars:

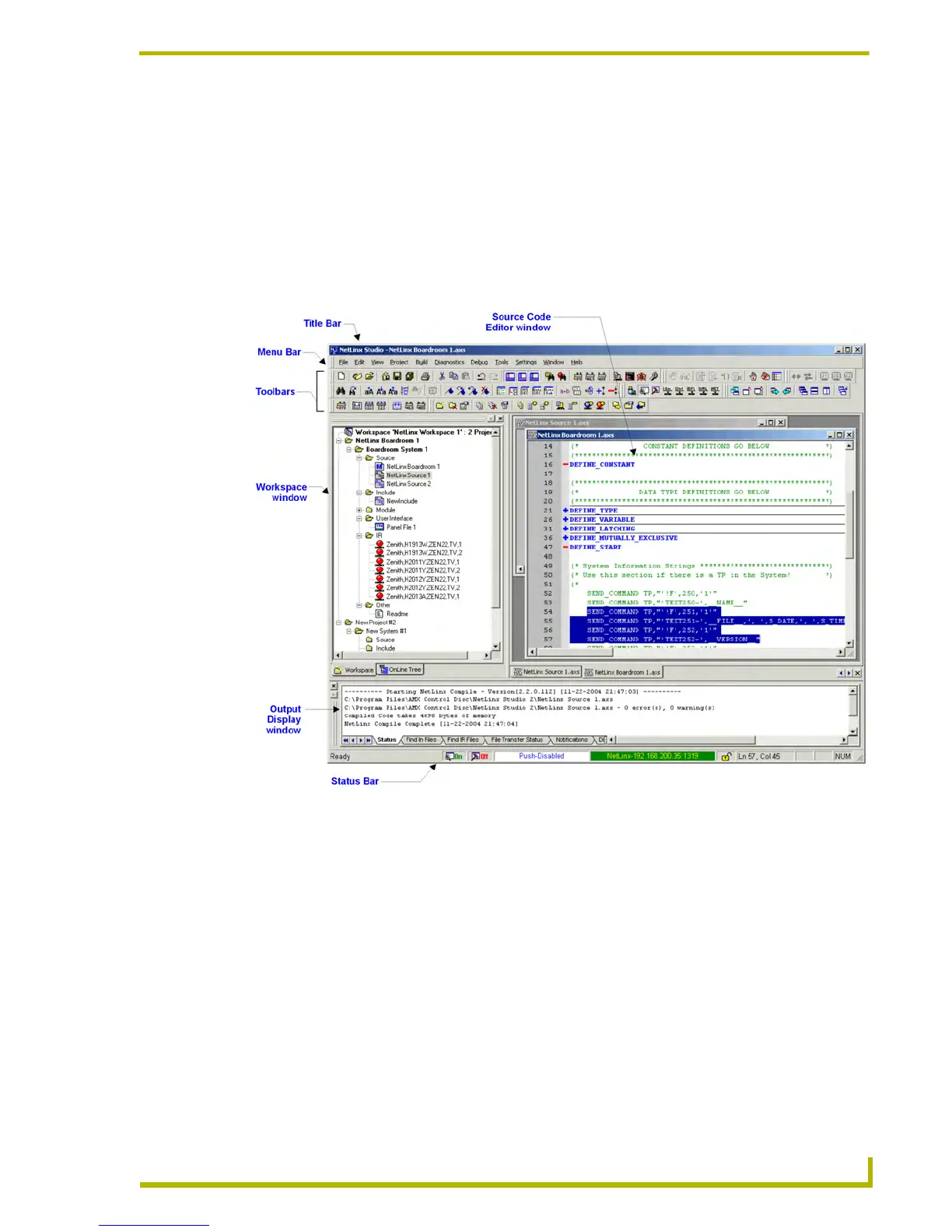

FIG. 1 The NetLinx Studio v2.4 Work Area
