The NetLinx Studio v2.4 Work Area

NetLinx Studio (v2.4 or higher)

Workspace Window

Use the Workspace Window (FIG. 4) to manage Project files, System files and online devices. The

Workspace Window contains two tabs (Workspace and Online Tree), which display all open

Workspace files (containing Projects and their associated System files), and all devices currently

on-line, in a tree structure.

 Click View > Workspace (or click the toolbar button) to toggle (show/hide) the

Workspace window.

 Right-click inside the menu bar or menu area to display the View Control Context Menu,

where you can select to hide or display the NetLinx Studio toolbars.

Workspace Window - Workspace Tab

The Workspace tab contains a tree structure of all the available Projects (and Systems) contained

within a Workspace file. You may create multiple Projects within a Workspace. Within a Project,

you can create multiple Systems.

The Workspace view can be expanded to show all of the various elements within each opened

Project file, as shown below.

 The first level within the open Workspace is the Project folder level.

 The next level is the System(s) contained within the Project, each represented by a

System folder.

 The third level contains the System File folders (Source, Include, Module, User Interface,

IR and Other).

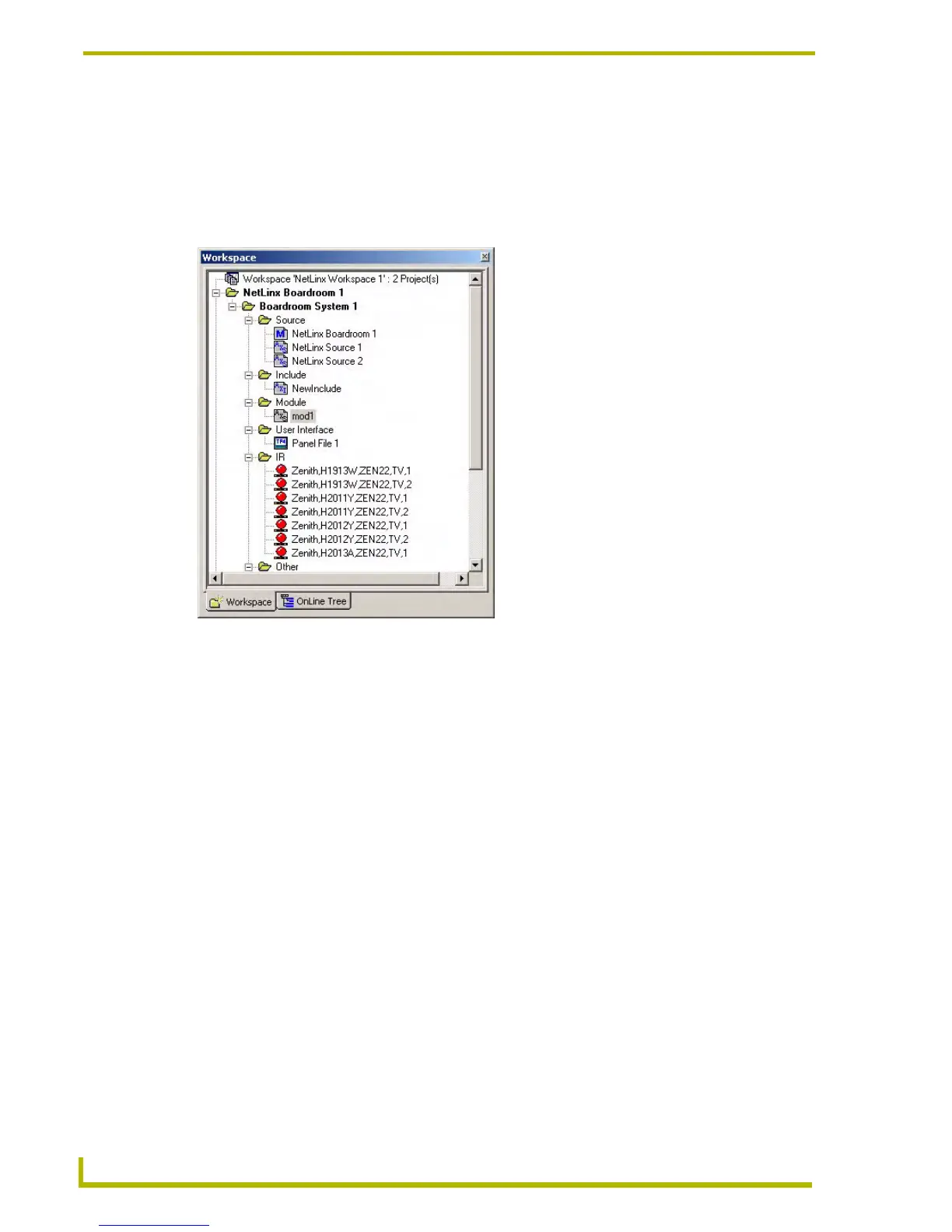

FIG. 4 Workspace Window (by default, displays the Workspace tab)
