VNA Master Tilt Bail Stand
The supplied Tilt Bail can be used for desktop operation. The tilt bail provides a backward tilt
for improved stability and air flow.
To deploy the tilt bail, pull the bottom of the tilt bail away from the back of the unit.
To store the tilt bail, push the bottom of the bail toward the back of the unit and snap the
bottom of the bail into the clip on the back of the unit.

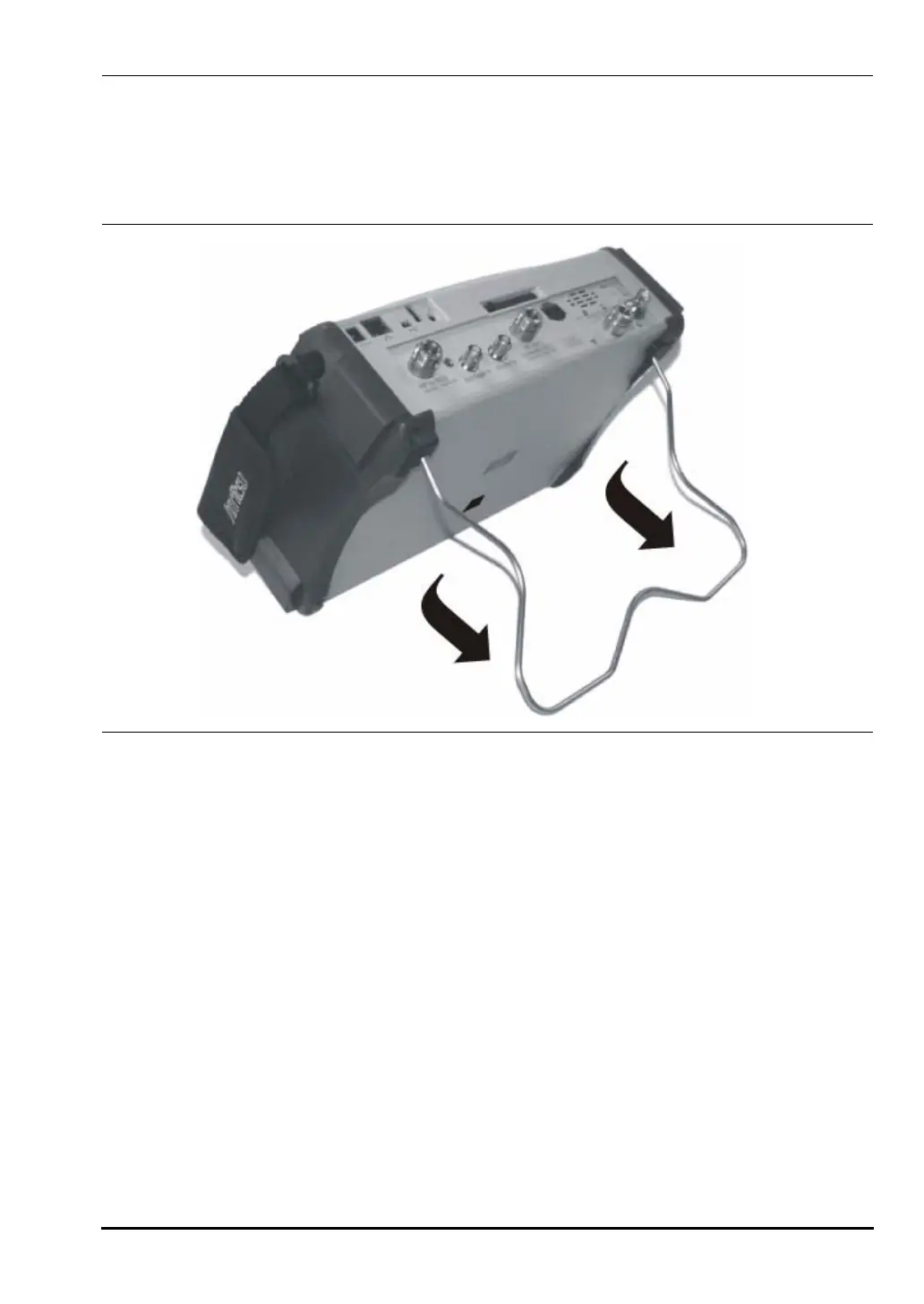

Figure 1-5. Tilt Bail Extended on VNA Master
