Chapter 1 — General Information 1-9 Soft Carrying Cases and Tilt Bails
MS20xxA VNA Master UG 10580-00166 Rev. C 1-11
1-9 Soft Carrying Cases and Tilt Bails
The soft carrying cases are slightly different for the MS202xA and MS203xA because the
MS203xA is larger. The tilt bail is factory-installed on the VNA Master for use with or
without the soft carrying case.
VNA Master Soft Carrying Case
The instrument can be operated while in the soft carrying case. On the back of the case is a
large storage pouch for accessories and supplies.
To install the instrument into the soft carrying case, perform the following:
1. The front panel of the case is secured with hook and loop fasteners. Fully open the front
panel of the case.
2. Place the soft carrying case face down on a stable surface, with the front panel fully
open and laying flat.
3. Fully open the zippered back of the case.
4. Insert the unit face down into the case, taking care that the connectors are properly
situated in the case top opening. Figure 1-3 shows the instrument in the case.
Note
Two zippers are located around the back of the case. The zipper closer to the
instrument compartment of the case opens the case back and allows access to install
and remove the unit. The other zipper closer to the back of the case opens a support
panel that can be used to provide support for improved stability and air flow while in the
case. This support panel also contains the storage pouch.

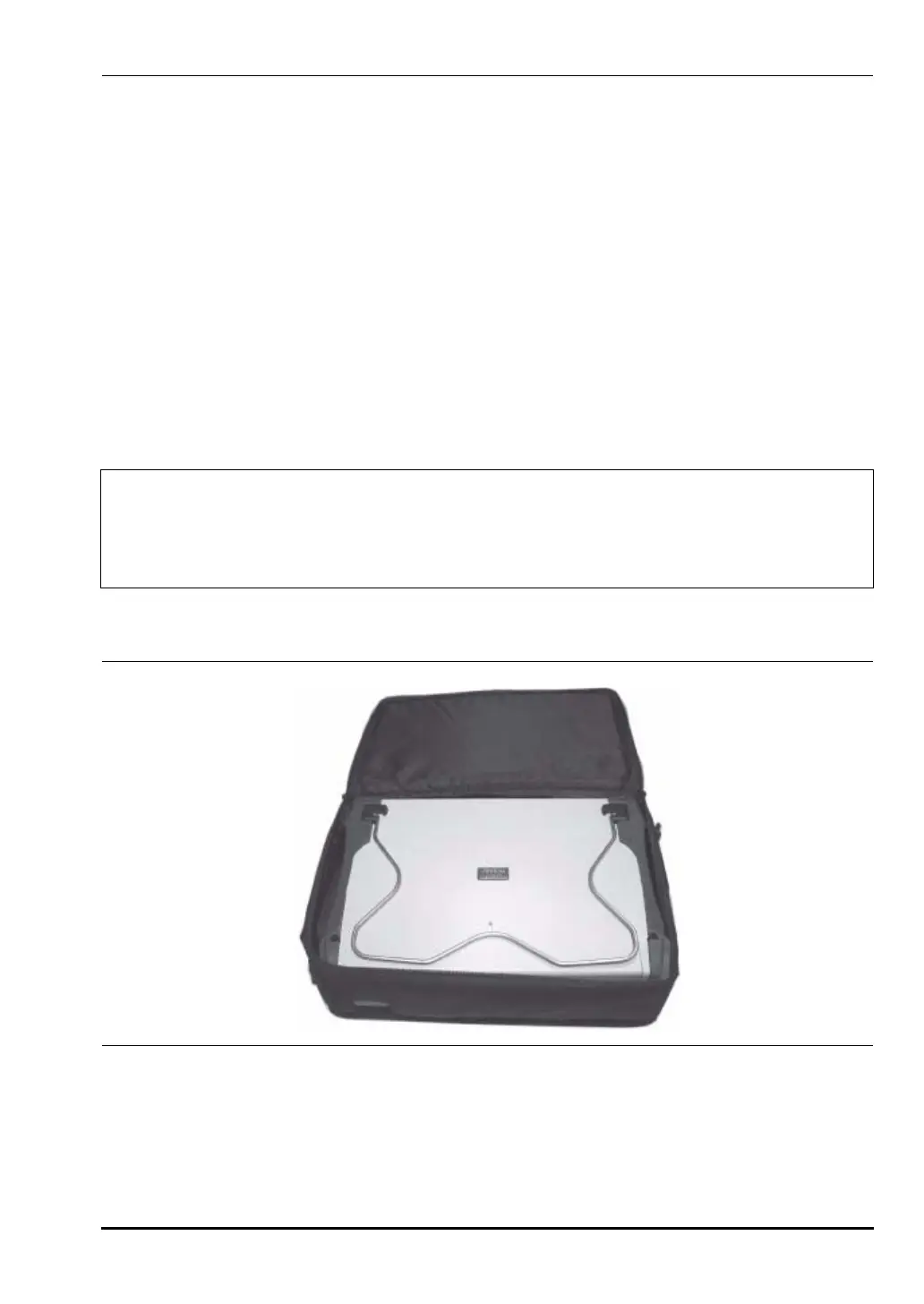

Figure 1-3. Instrument Inserted Into the Soft Carrying Case
