Chapter 2 — Quick Start Guide 2-10 Test Panel Connectors
MS20xxA VNA Master UG 10580-00166 Rev. C 2-11
2-10 Test Panel Connectors
The MS202xA (shown in Figure 2-9) can be differentiated from the MS203xA by the front
panel model number label as well as by major differences in the connectors on the unit top.
The MS203xA shown in Figure 2-10 is slightly larger and contains additional connections for
spectrum analysis.
MS202xA Test Panel Connectors
The connectors and indicators located on the test panel of the MS202xA are shown in
Figure 2-9 and are described below.

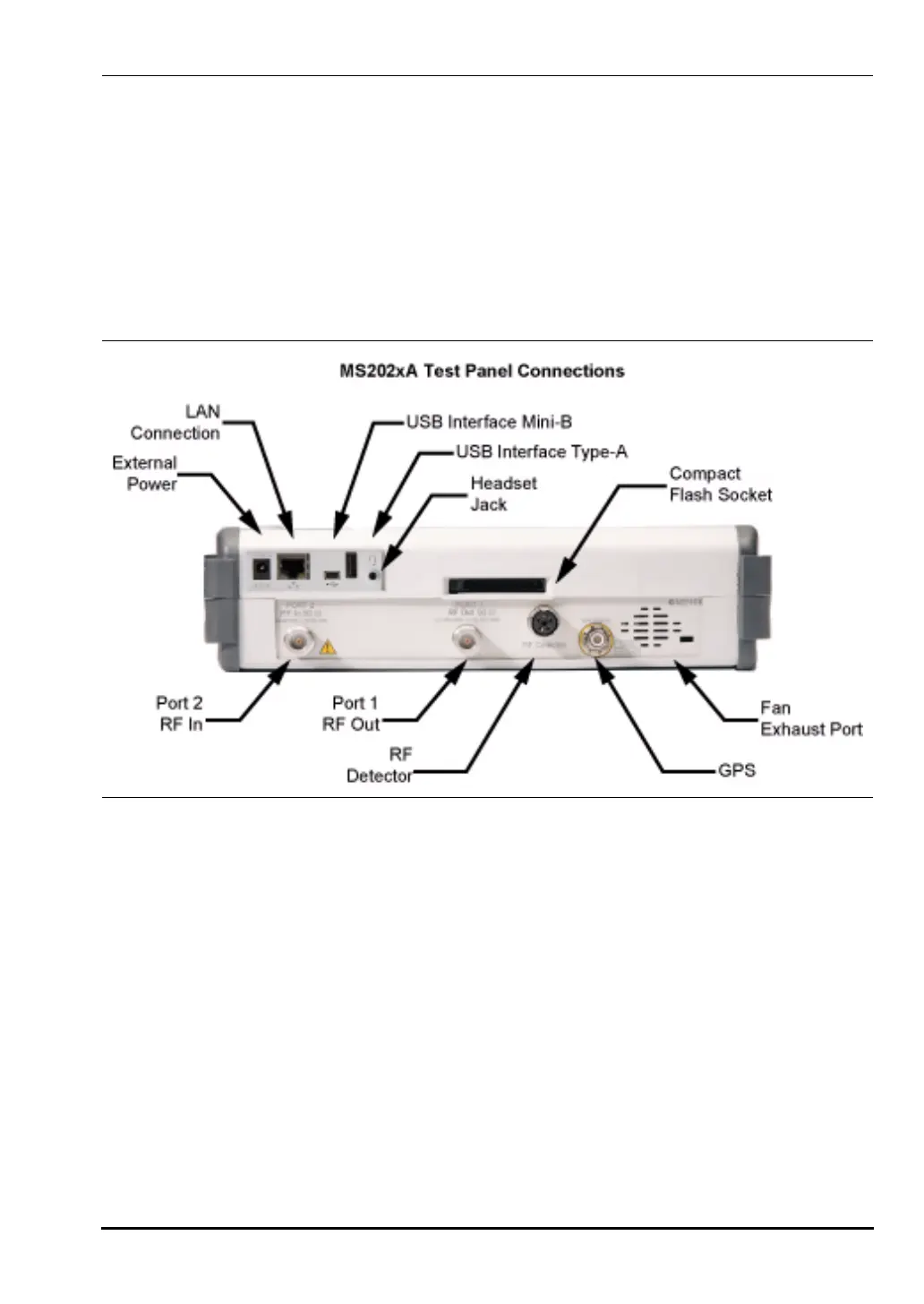

Figure 2-9. MS2024A and MS2026A Test Panel Connectors
10580-00166C.book Page 11 Thursday, February 21, 2008 12:52 PM
