Chapter 3 — Vector Network Analyzer 3-4 Using Trace Math - Comparing Return Loss
MS20xxA VNA Master UG 10580-00166 Rev. C 3-9
7. Press the Trace Minus Memory soft key to look at the difference in Return Loss between
the two cables.

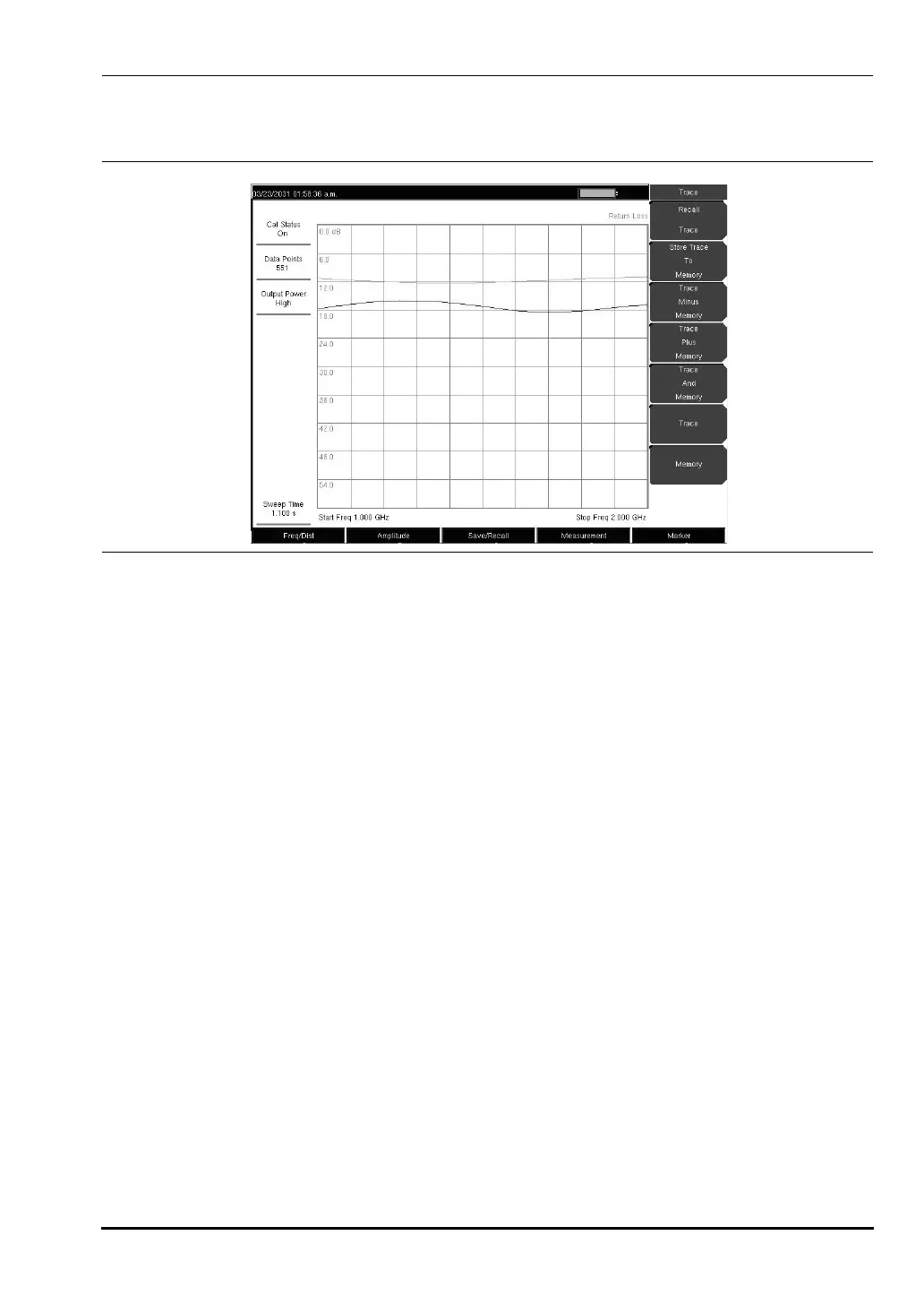

Figure 3-3. Trace Menu Showing Trace and Memory (Field Measurement Menu Shown)
10580-00166C.book Page 9 Thursday, February 21, 2008 12:52 PM
