3-6 VNA Measurements - Group Delay Chapter 3 — Vector Network Analyzer
3-24 MS20xxA VNA Master UG 10580-00166 Rev. C
Procedure
1. Press the Measurement key and select the S21 Transmission or S11 Reflection soft key.
2. Select the
Group Delay S21 or the Group Delay S11 soft key.
3. Press the
Scale key and use the soft keys to adjust the scaling and aperture for the
group delay measurement.

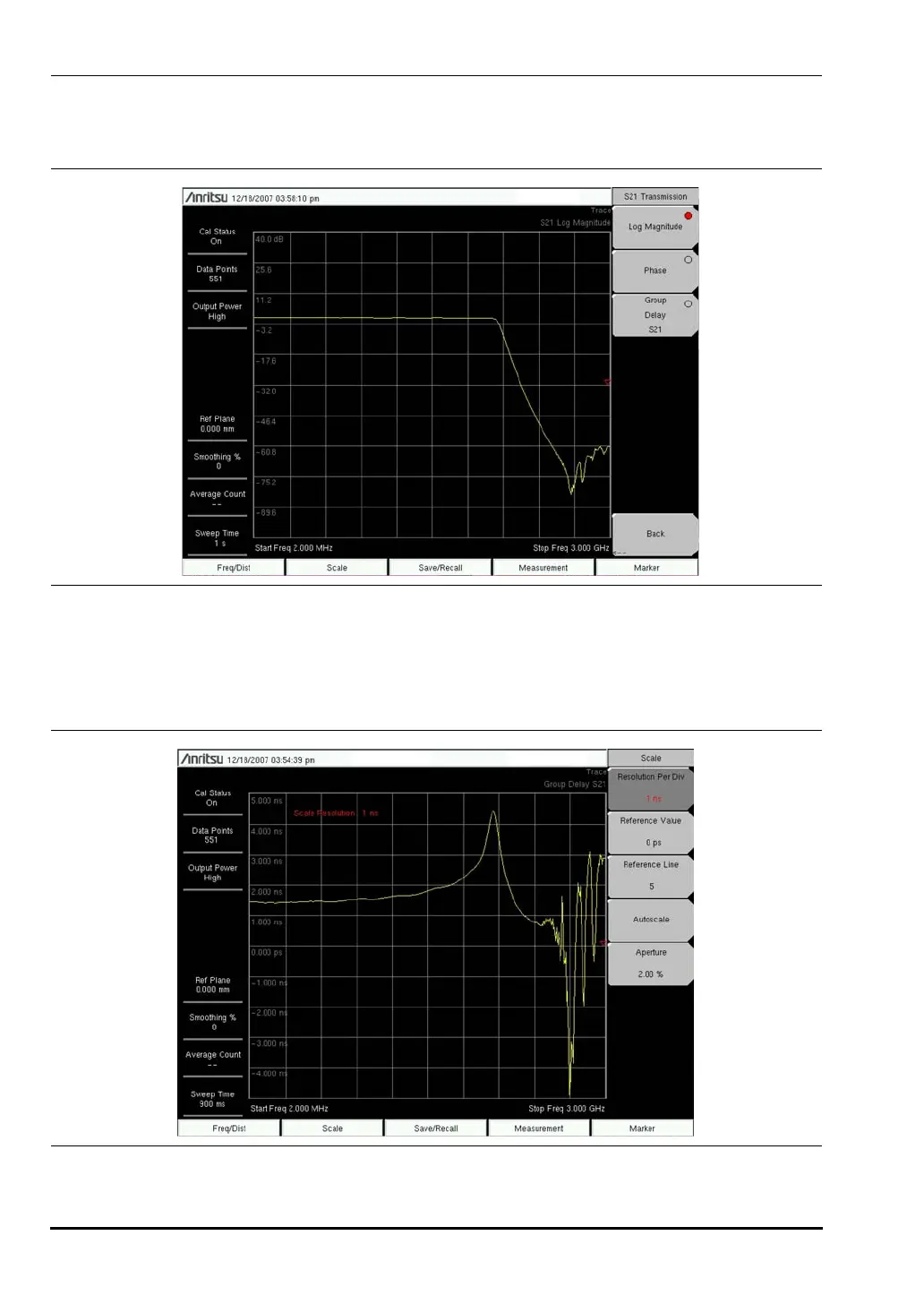

Figure 3-17. S21 Transmission Display with Soft Key Menu
Figure 3-18. Group Delay Display with Scale Soft Menu
