TD-LTE Signal Analyzer 6-3 TD-LTE RF Measurements
3GPP MG PN: 10580-00234 Rev. T 6-5
Power vs. Time
1. Press the Measurements main menu key.
2. Press the RF submenu key.
3. Press the Power vs. Time submenu key to select measurement.
4. Press the Power vs. Time submenu key again to set the View and Sub-Frame Number
parameters.
5. Press the Back submenu key to return to the RF menu.

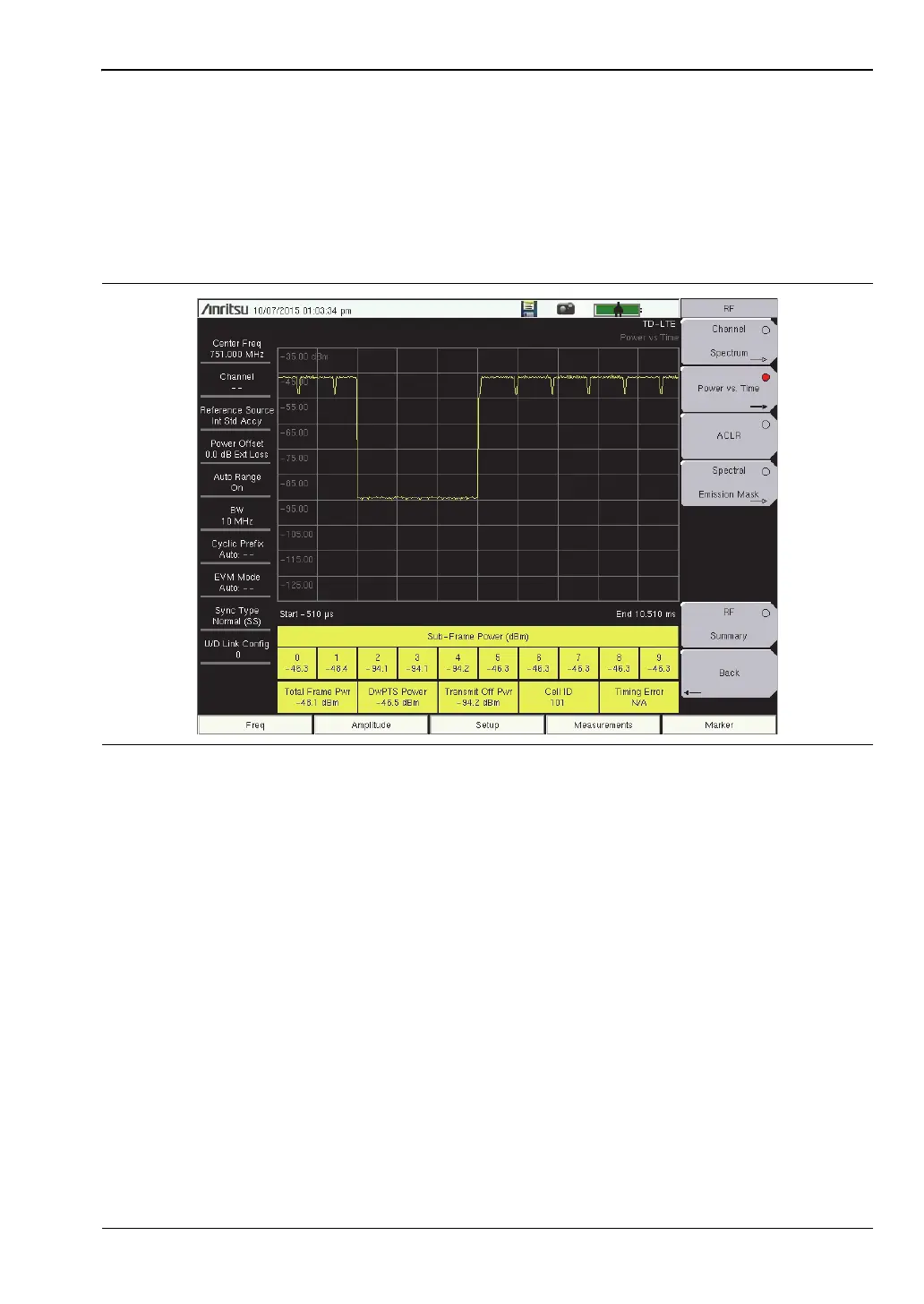

Figure 6-3. Power vs. Time
