6-3 TD-LTE RF Measurements TD-LTE Signal Analyzer
6-6 PN: 10580-00234 Rev. T 3GPP MG
ACLR
1. Press the Measurements main menu key.
2. Press the RF submenu key.
3. Press the ACLR submenu key to activate ACLR display and measurement (Figure 6-4).
4. Press the Back submenu key to return to the Measurements menu.

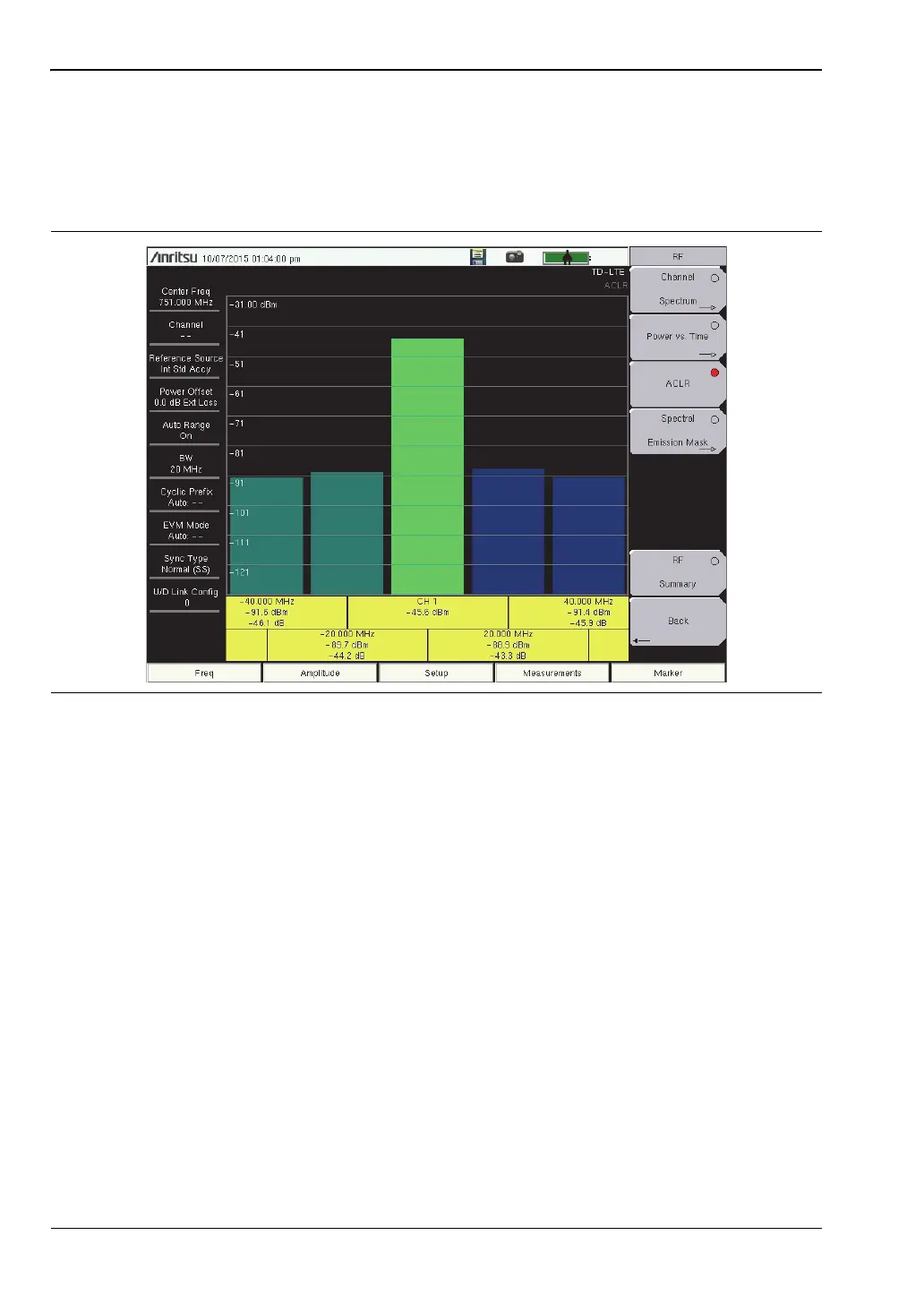

Figure 6-4. Adjacent Channel Leakage Ratio
