6-3 TD-LTE RF Measurements TD-LTE Signal Analyzer
6-8 PN: 10580-00234 Rev. T 3GPP MG
RF Summary
1. Press the Measurements main menu key.
2. Press the RF submenu key.
3. Press the RF Summary submenu key to activate and display the RF measurements in
table format (Figure 6-6).
4. Press the Back submenu key to return to the Measurements menu.

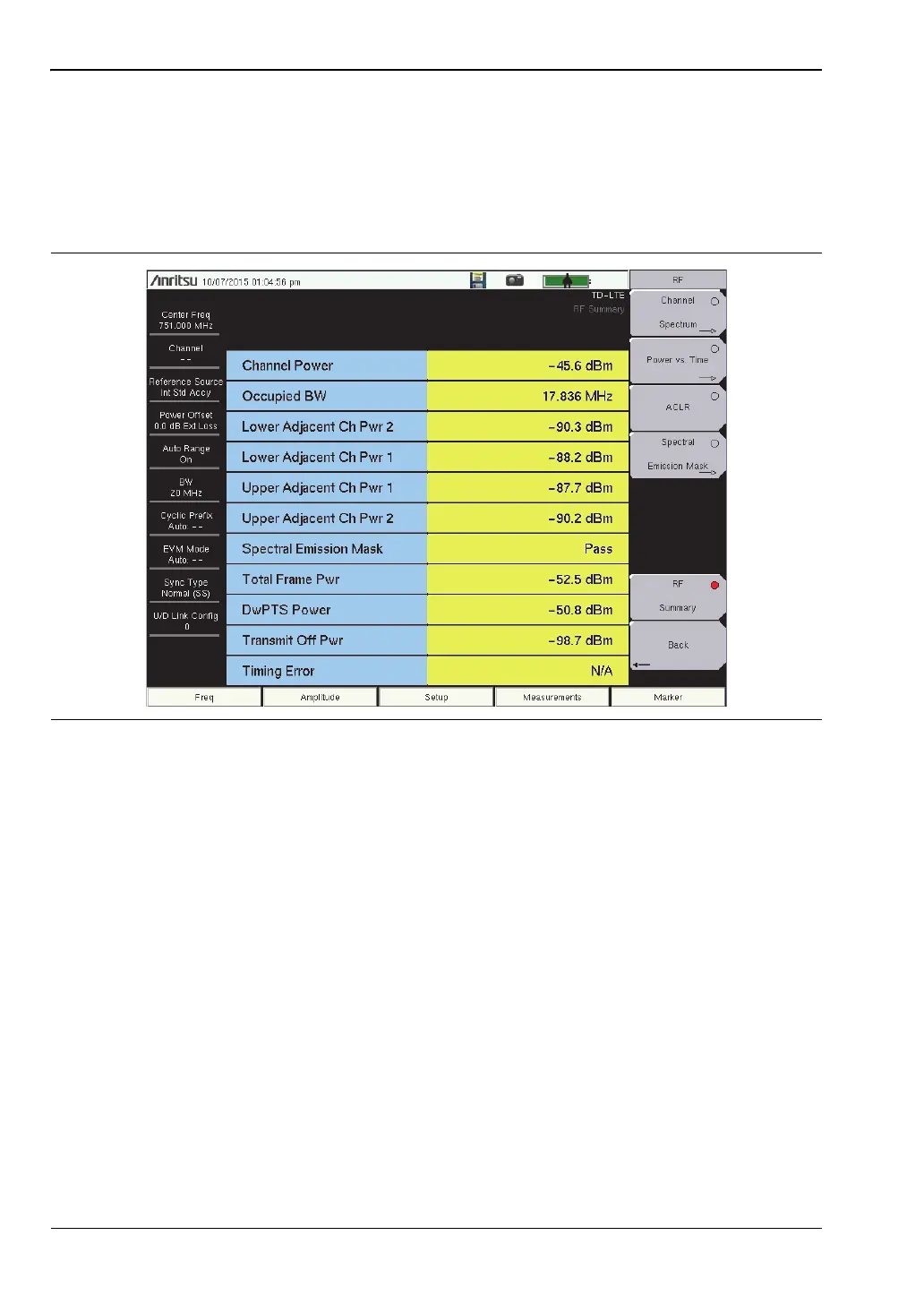

Figure 6-6. RF Summary
