TD-LTE Signal Analyzer 6-4 TD-LTE Modulation Measurements
3GPP MG PN: 10580-00234 Rev. T 6-13
Constellation
1. Press the Measurements main menu key.
2. Press the Modulation submenu key.
3. Press the Constellation submenu key to activate the Constellation measurement view
(Figure 6-8). Press the Constellation submenu key again to list the Constellation menu
and set up the reference points and data legend.
a. Press the Reference Points submenu key to turn the reference points
(small white circles) On or Off.
b. Press the Data Legend submenu key to turn the data legend On or Off.
4. Press the Back submenu key to return to the Modulation menu.

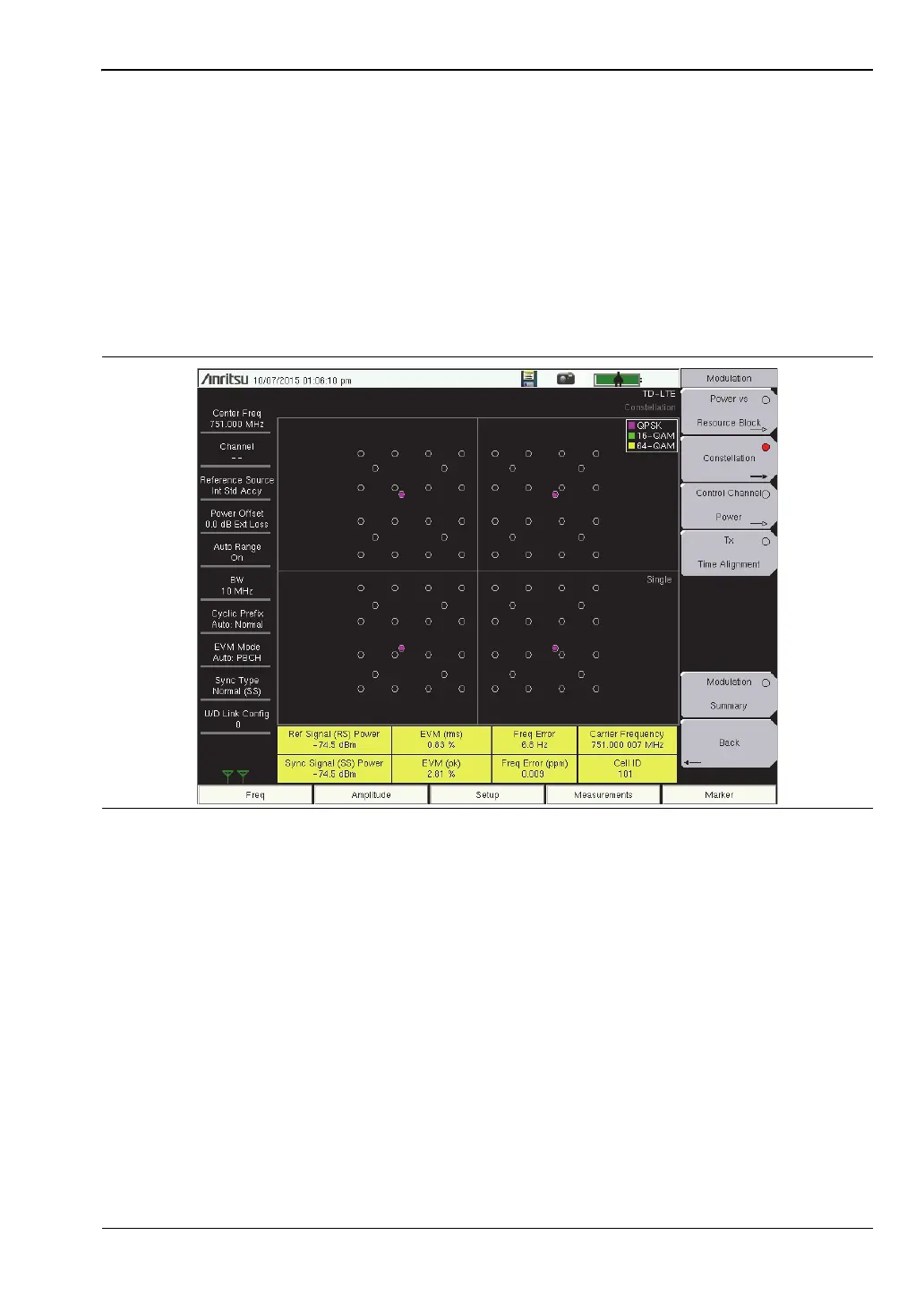

Figure 6-8. Constellation Measurement View
