7-5 Coverage Mapping Menu LTE and TD-LTE Coverage Mapping
7-12 PN: 10580-00234 Rev. T 3GPP MG
7-5 Coverage Mapping Menu
Key Sequence: Measurements > Over-the-Air > Mapping
Save/Recall Map Points: Opens the “Mapping Save/Recall Menu”
on page 7-13.
Measurement Setups: Opens the “Measurement Setup Menu”
on page 7-14.
Point Distance/Time Setup: Opens the “Point Distance/Time Setup Menu”
on page 7-15.
Back: Returns to the “Over-the-Air Menu” on page 5-37 (LTE) or
“Over-the-Air Menu” on page 6-41 (TD-LTE).
Start/Stop Data Collection: Press this main menu key to start collection of
coverage mapping data based on the settings of Measurement Setup and
Point Distance/Time Setup. A running count of collected data points is
displayed at the bottom of the map. Press this key again to stop data
collection.

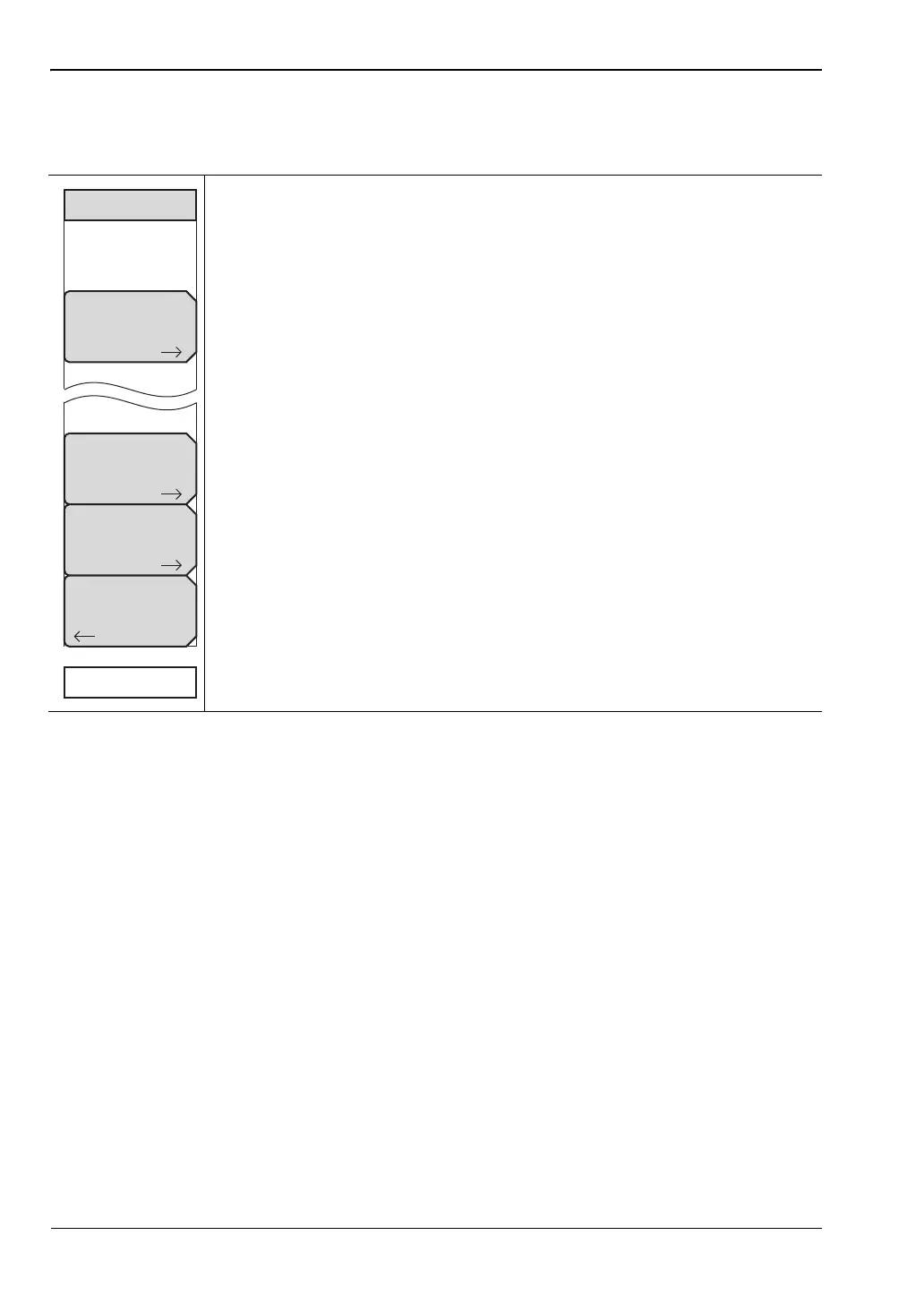

Figure 7-8. Coverage Mapping Menu
Save/Recall
Points/Map
Measurement
Setup
Point
Distance/Time
Setup
Coverage Mapping
Back
Start Data Collection
