Low Side Lobe Windowing

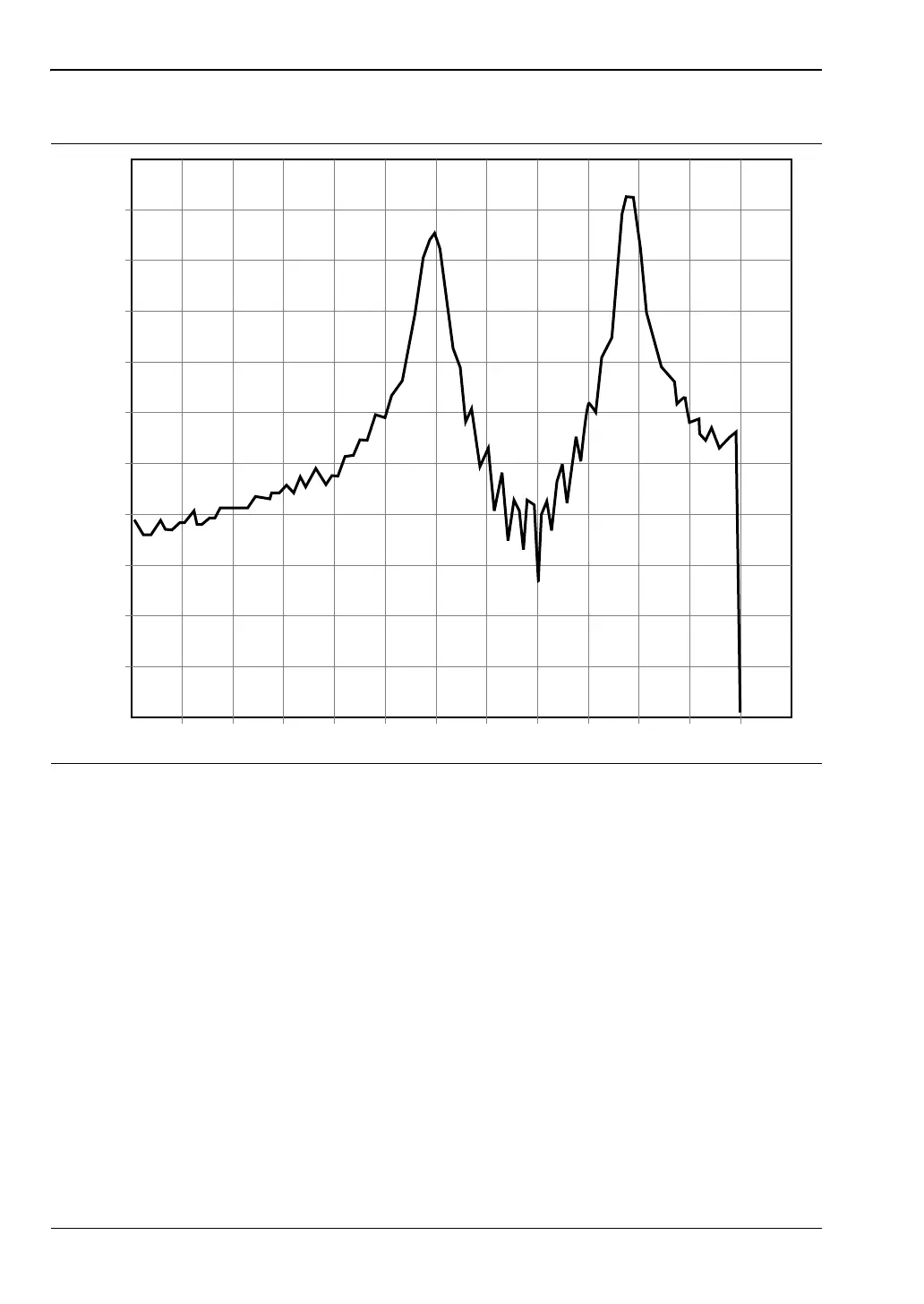

This Distance To Fault graph has Return Loss (dB) on the vertical scale (y-axis) and distance
in feet on the horizontal scale (x-axis).
This view of Low Side Lobe Windowing shows less side lobe resolution than Nominal Side
Lobe Windowing and more side lobe resolution than Minimum Side Lobe Windowing. This
level of windowing displays intermediate resolution.
Figure A-3. Low Side Lobe Windowing Example
