Option Verification 5-4 ISDB-T and BER Verification, Options 30 and 79
MT8212E and MT8213E MM PN: 10580-00255 Rev. J 5-7
Frequency Accuracy Verification
The test in this section can be used to verify the frequency accuracy of the MT821xE in ISDB-T Signal
Analyzer mode.
Setup
Procedure
1. Connect the equipment as shown in Figure 5-1.
2. On MG3700A press the Preset key (Yellow key on the upper left-hand side)
3. Press the Down Arrow key to select Yes.
4. Press the Set key.
5. Press the (F1) soft key to select Load File to Memory.
6. Press the (F1) soft key again to select Select Package.
7. Using the Down Arrow key, step through the selection list until the “Digital_Broadcast” option is
highlighted.
8. Press the Set key.
9. Press the F6 (Return) soft key.
10. Press the Set key.

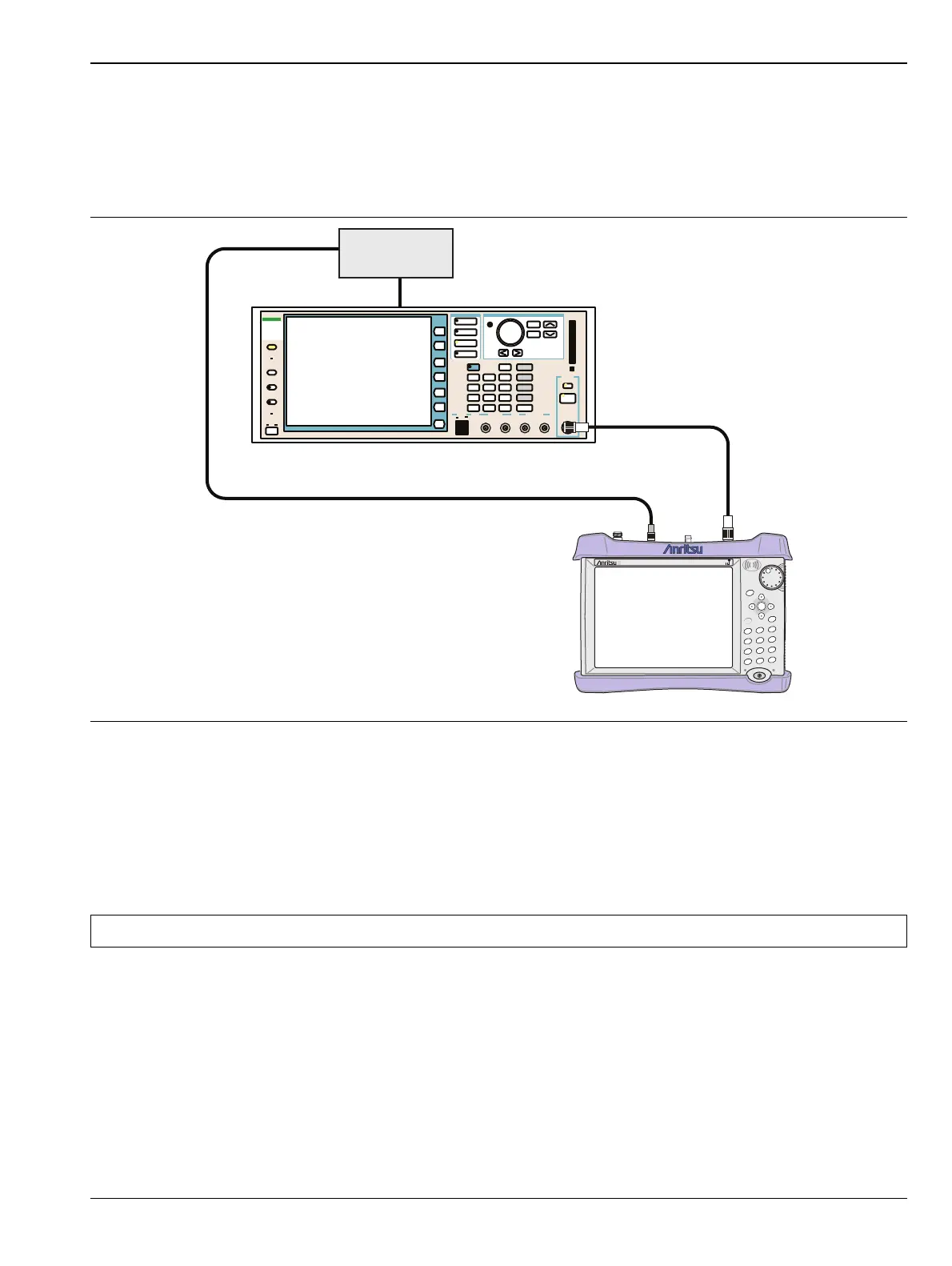

Figure 5-1. ISDB-T Signal Analyzer Test Setup
Note The MG3700A has two Set keys, and that they both have the same function.
MT821xE Cell Master
Power Charge
+/-
.
0
3
Sweep
2
Calibrate
1
Preset
6
Limit
5
Trace
4
Measure
9
Mode
8
System
7
File
Shift
Back
Enter
ESC
CellMaster
MT8212E
15NN50-1.5C
MG3700A Vector Signal Generator
Function
Ethernet Control Input Modulation Input
Cursor/Edit
RF Output
3
MG3700
Vector Signal
Generator
250kHz-6GHz
10 MHz
Reference
