CPS100 SERIES OPERATION MANUAL
SECTION 6:
Front Panel Operation
Entire Contents Copyright 2018 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS.
APS CPS100 Series Power Source Operation Manual Page 108 of 231

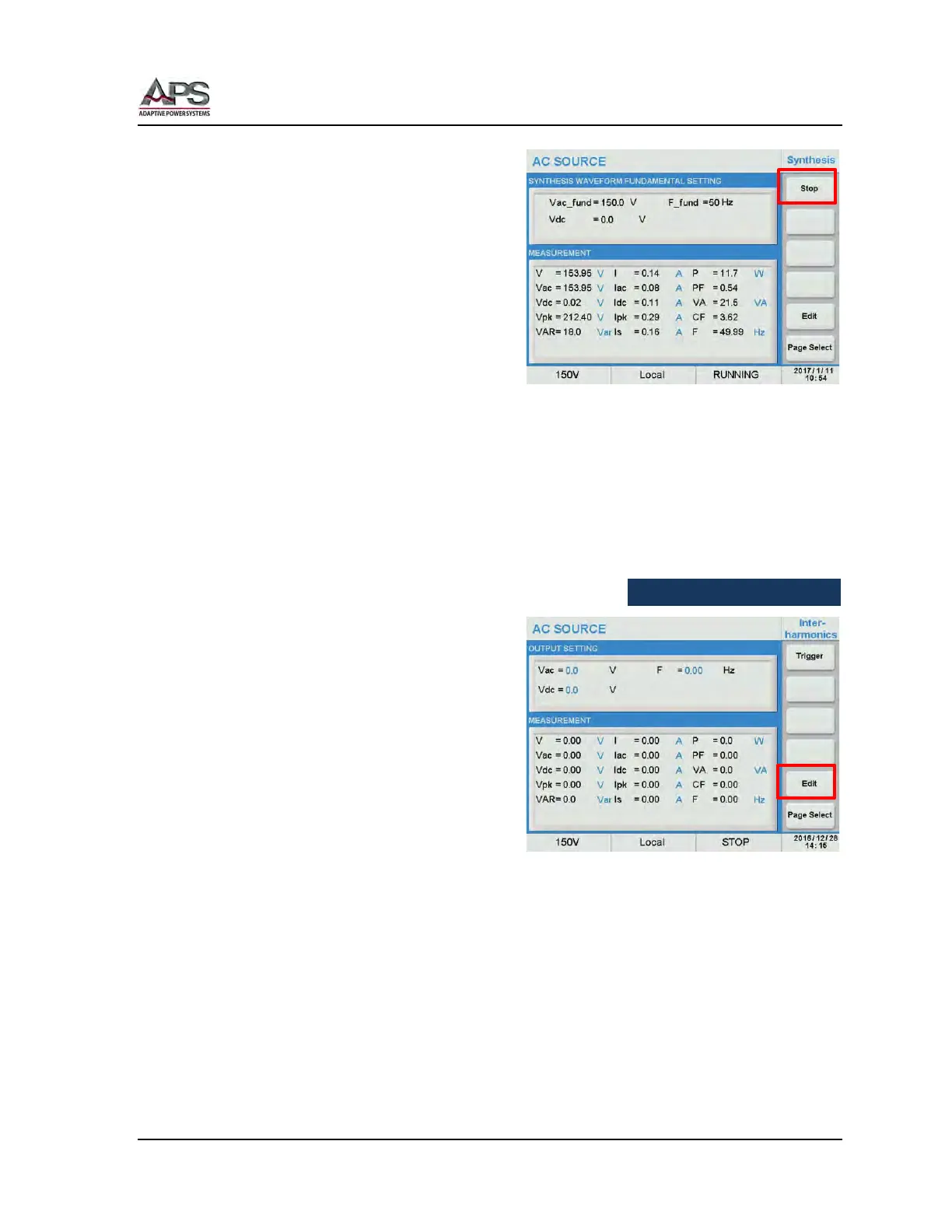

To revert back to the regular waveform
selection – not the synthesized waveform –
press the Stop soft key.
Notes:
• The following amplitude limitations apply to the synthesized waveform settings:
o For N = 2 ~ 10: Amplitude value ≤ 150V or percent ≤ 100%
o For N = 11 ~ 20: Amplitude value ≤ 120V or percent ≤ 50%
o For N = 21 ~ 30: Amplitude value ≤ 80V or percent ≤ 30%
o For N = 31 ~ 40: Amplitude value ≤ 45V or percent ≤ 15%
• An OVP error is generated if the output of the synthesized waveform + DC offset
exceeds 424Vpk on the 300V range or 212Vpk on the 150V range.
6.9.2.2 Inter-Harmonics
Inter-harmonics allow the user to insert a
frequency component sweep at the output
at a frequency that is not harmonically
related to the fundamental frequency. This
function is useful for performing immunity
tests.
Press the Inter-Harmonics soft key to display
the Inter-Harmonics screens shown here.
There are two available soft keys on this
screen:
• Trigger
• Edit
Press the Edit soft key to set the inter-harmonic parameters.
