The following parameters are available to
define the inter-harmonic component:
• F start Start frequency
• F end End frequency
• Level Amplitude in % of nVac
• Time Time duration from F start to
Fend
• nVac Fundamental voltage
• nF Fundamental frequency

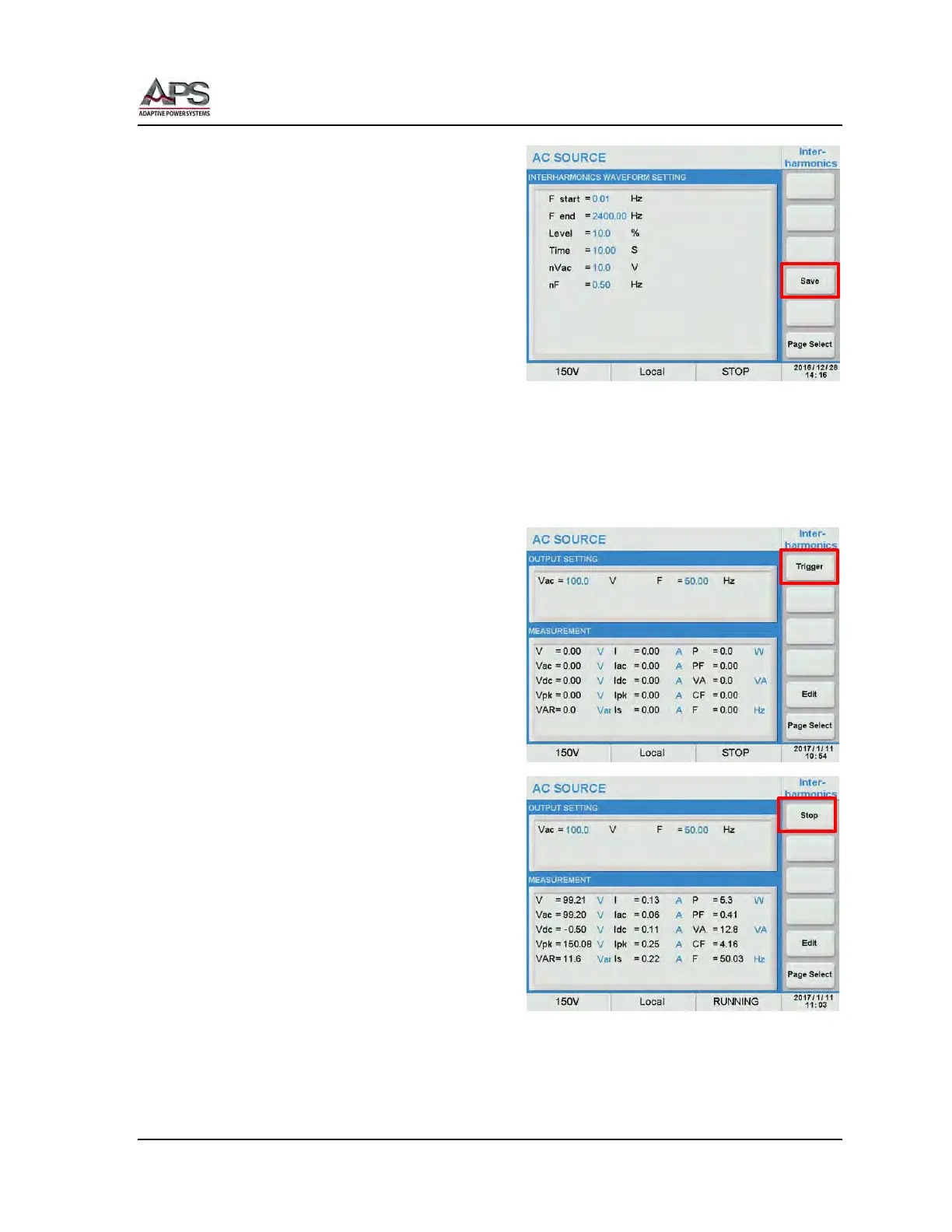

Use the cursor keys or touch screen to set the inter-harmonics and fundamental parameters
to create the desired inter-harmonic frequency sweep. When done, press the Save soft key
to save this setting to non-volatile memory.
Note: If the inter-harmonic setting is not saved, it will be lost when the power source is
turned off.
The output the inter-harmonic sweep, press
the [Esc] key to return to the previous
screen.
Next, press the Trigger soft key to start the
sweep. Once pressed, it changes to Stop.
After the Time duration expires – in this
example 10 seconds - the output will revert
to the prior steady state setting and the Stop
soft key reverts to Trigger.
The sweep can be aborted if needed by
pressing the Stop soft key.
