IEC 4-13 Over Swing Test

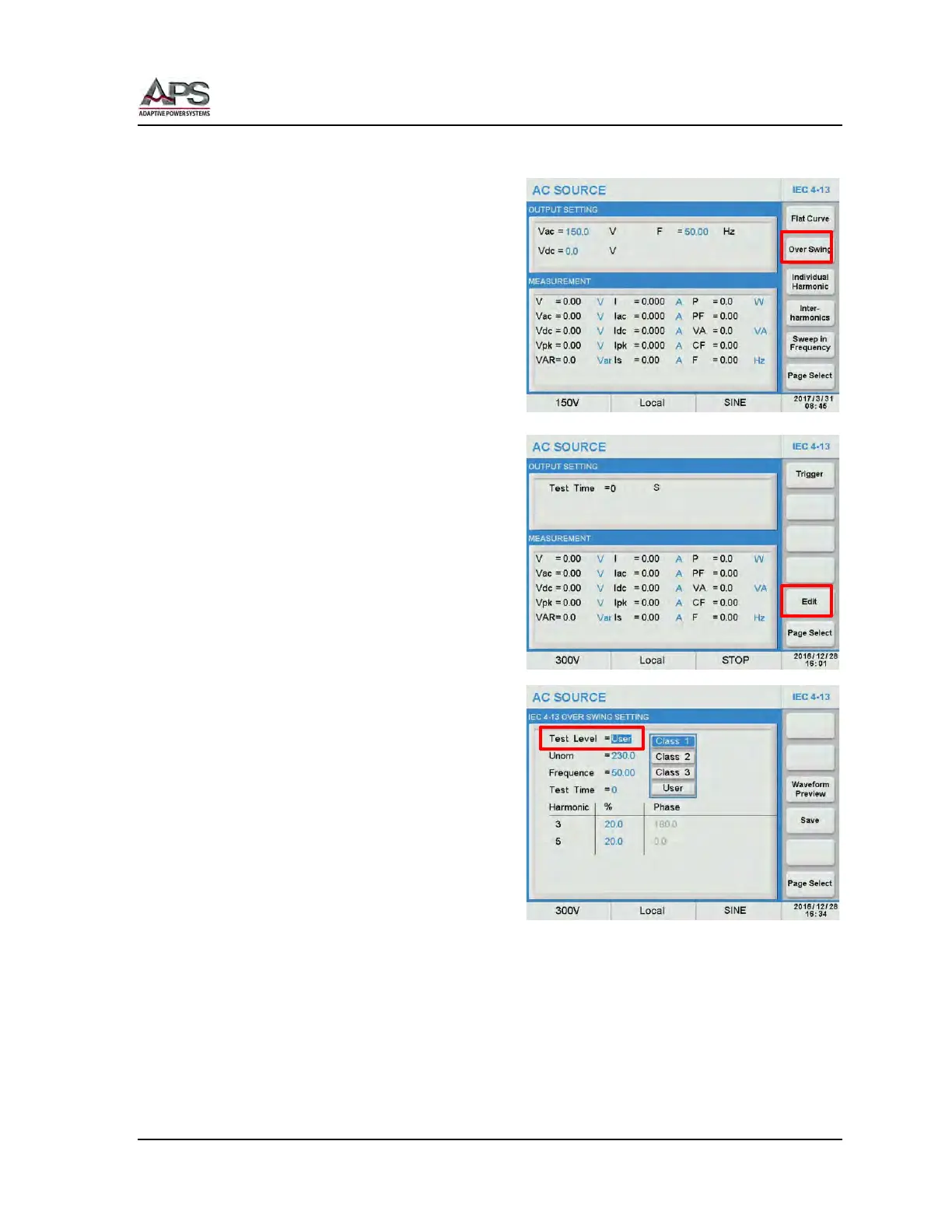

From the top level IEC 4-13 menu, press the
Over Swing soft key to display the Over
Swing test screen.
Available soft keys in this screen are Trigger
and Edit. Press the Edit soft key to set the
required test selections for this test.
There are three standard product classes for
the IEC 61000-4-13. They are Class 1, Class 2
and Class 3. (Standard modes) Test levels and
durations for these product classes are
defined by the IEC 61000-4-13 standard.
There is also a User class, which allows
parameters to be changed. (User mode).
To select the appropriate product class for
the unit under test, move the cursor to the
“Test Level =” field and press [Enter]. A drop
down list with product class selections is
displayed.
The following other test parameters are available:
• Unom: Nominal test voltage. Fixed at 230V in standard modes.
• Frequency: 50Hz or 60Hz in standard modes.
• Test Time: Duration of the test. Range is from 0 ~ 9999. Zero means infinite
loop.
• Harmonic 3: Amplitude in percent
