IEC 4-13 Individual Harmonics Test

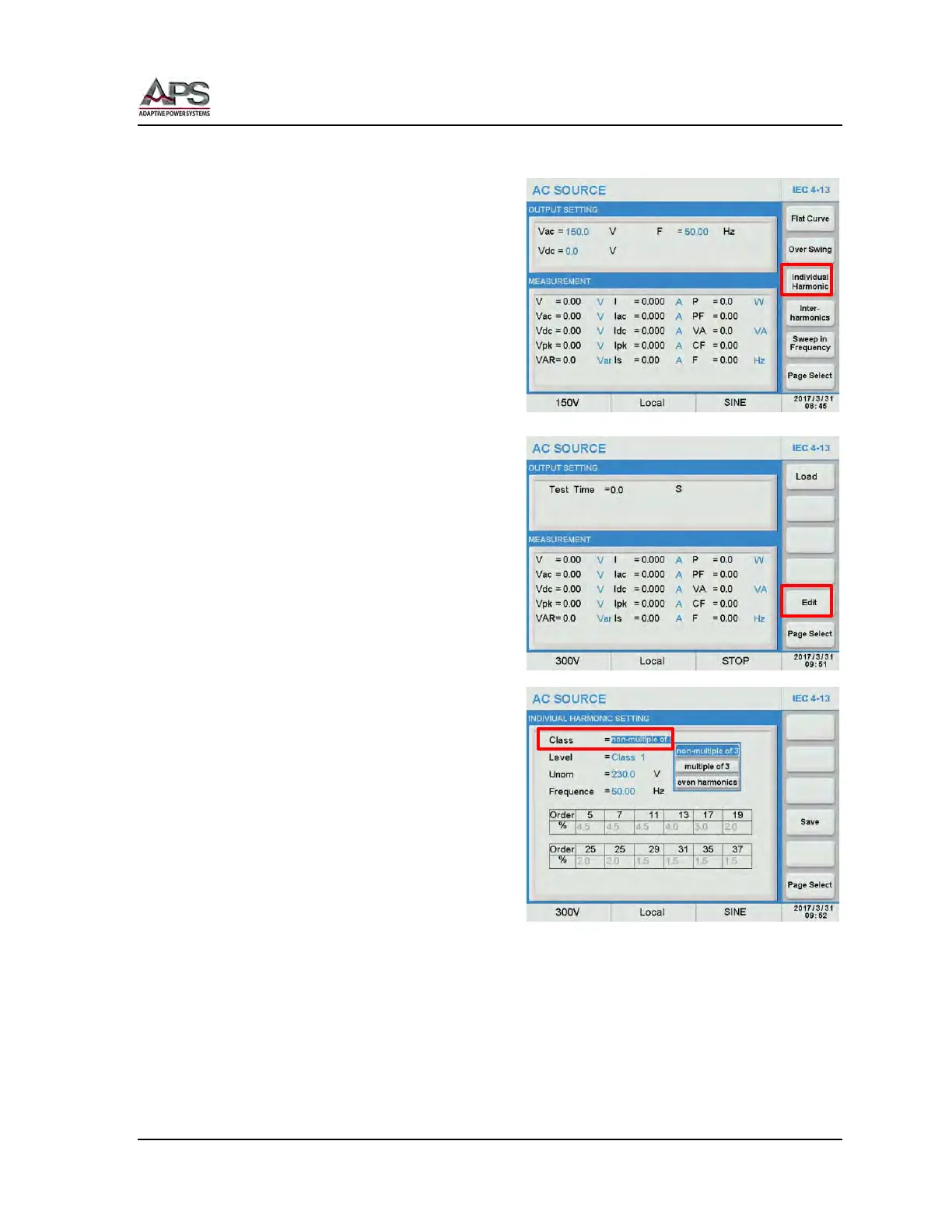

From the top level IEC 4-13 menu, press the
Individual Harmonics soft key to display the
Individual Harmonics test screen.
Available soft keys in this screen are Trigger
and Edit. Press the Edit soft key to set the
required test selections for this test.
There are three different applications for the
individual harmonics, selectable in the Class
field. They are:
• non-multiple of 3
• multiple of 3
• even harmonics
To select the relevant test class, move the
cursor to the “Class” field end use the shuttle
or touch screen to select. Press [Enter] to
confirm.
