For the test levels, there are three standard
product classes for the IEC 61000-4-13. They
are Class 1, Class 2 and Class 3. (Standard
modes) Test levels and durations for these
product classes are defined by the IEC 61000-
4-13 standard. There is also a User class,
which allows parameters to be changed.
(User mode).

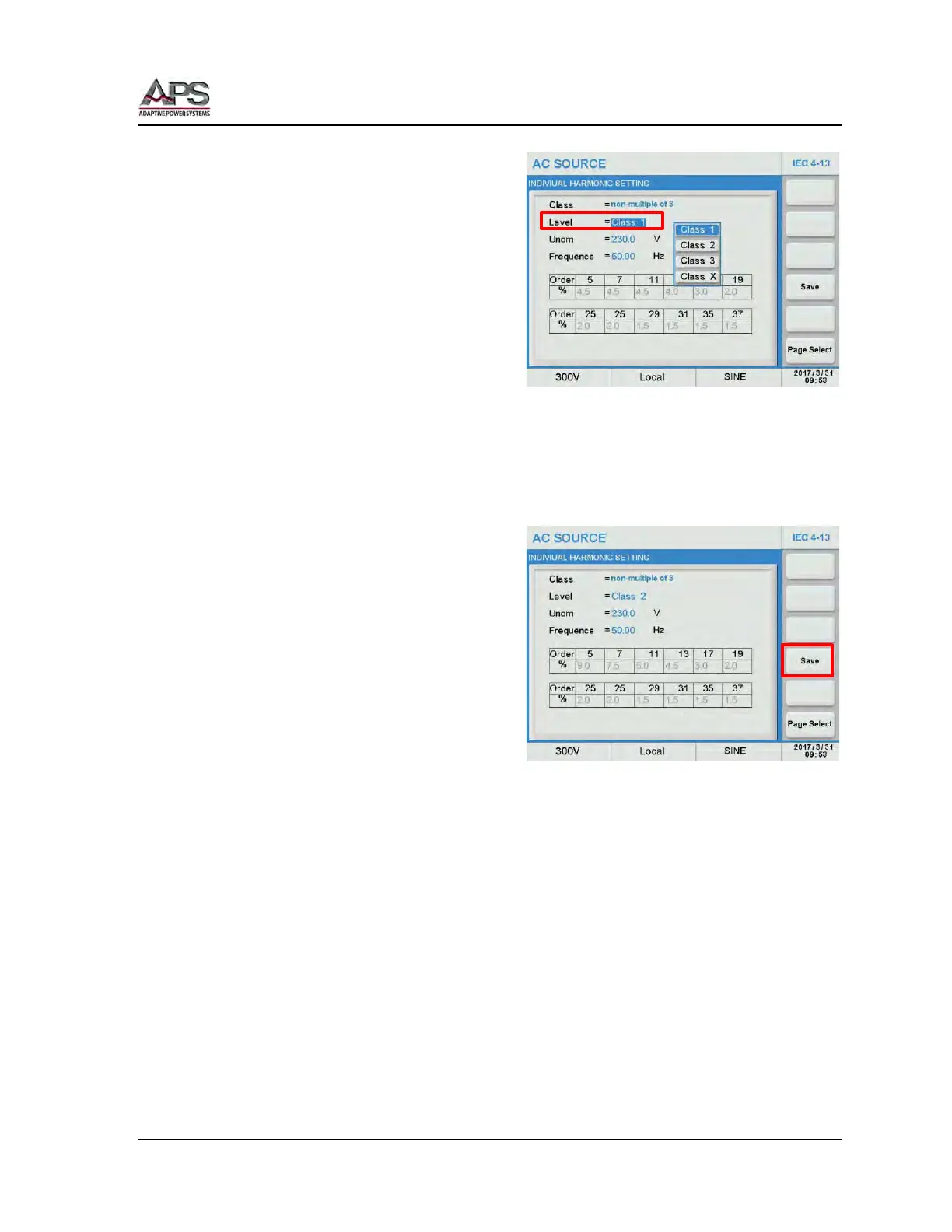

To select the appropriate product class for
the unit under test, move the cursor to the
“Level =” field and press [Enter]. A drop
down list with product class selections is
displayed.
The following other test parameters are available:
• Unom: Nominal test voltage. Fixed at 230V in standard modes.
• Frequency: 50Hz or 60Hz in standard modes.
For User class, set the Unom parameter as
desired. For classes 1 through 3, select the
required frequency – typically 50Hz.
Once set, press the Save soft key to store the
test setting in non-volatile memory
Note: If the IEC 4-13 test setting is not
saved, it will be lost when the power
source is turned off.
