Running the IEC 4-13 Individual Harmonics test
Return to the previous IEC 4-13 menu by
pressing the [Esc] key.

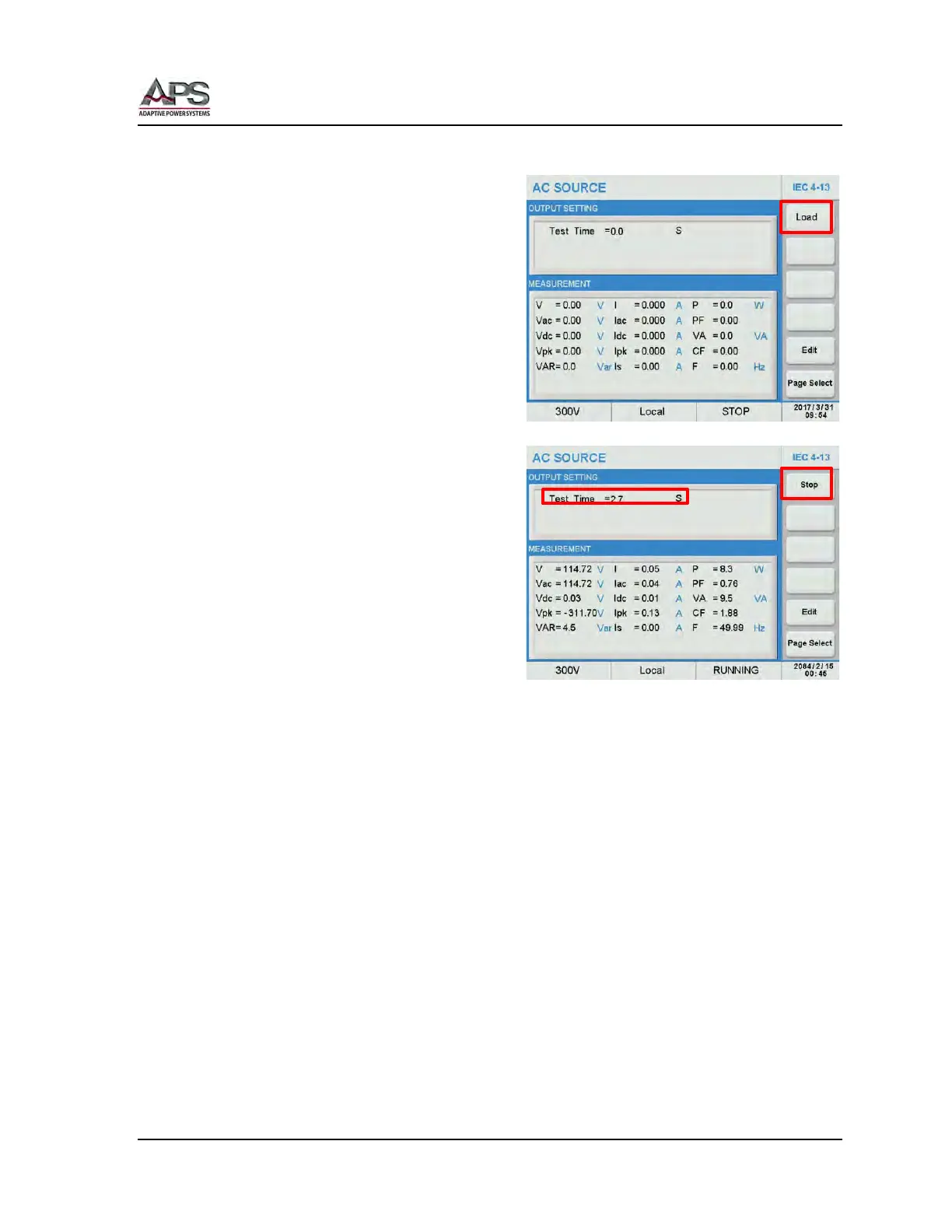

Press the Load soft key to apply the test to
the unit under test. Once pressed, it changes
to Stop.
The test will now run until completed. Total
test time is determined by the Class and
Level settings.
The test time count down in seconds is
visible in the upper part of the IEC 4-13
screen.
At the completion of the test, the Stop soft
key will revert to Load. To abort a test in
progress, press the Stop soft key during a
test run
