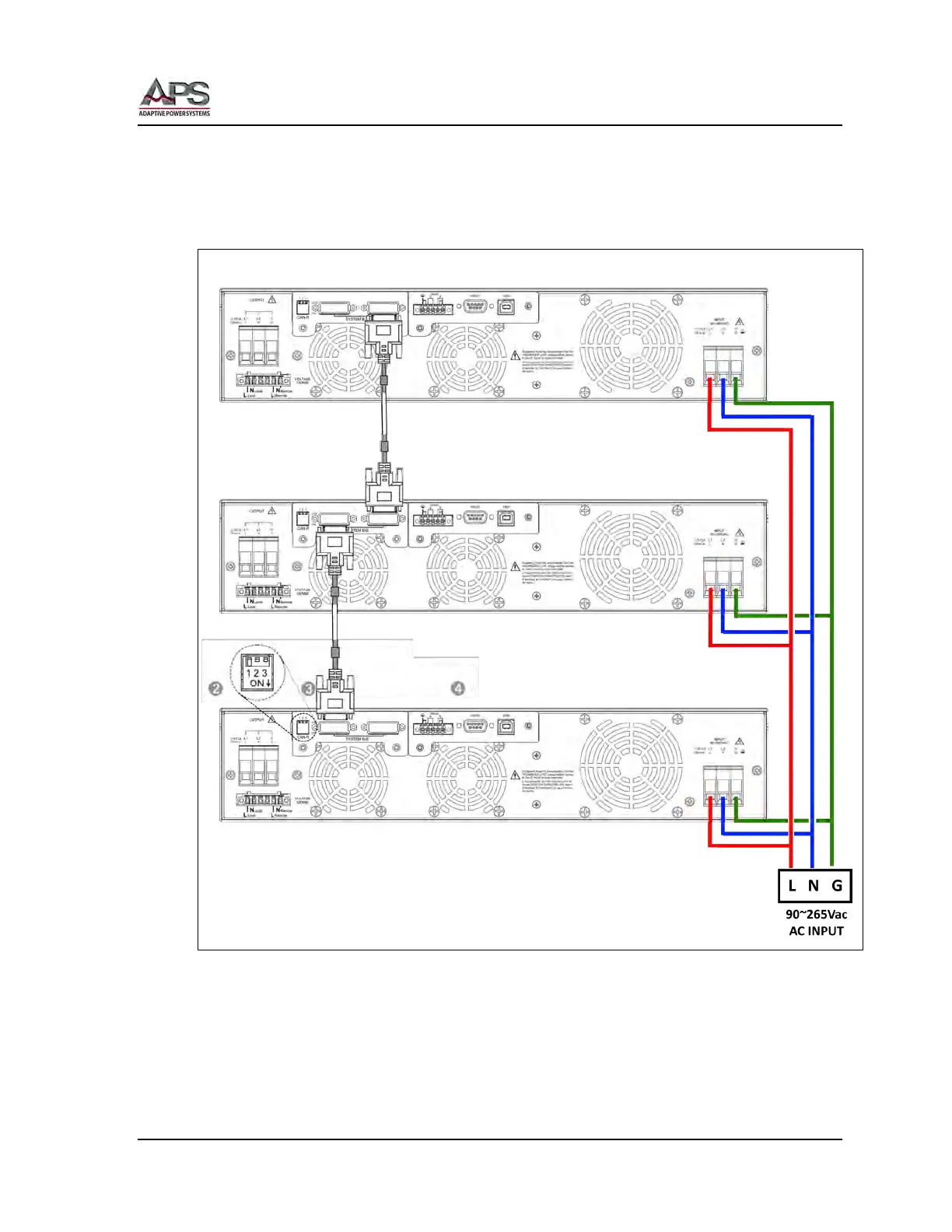

8.5.4.1 1-Phase Mode Connection Diagram – 230 V~ 1ø AC Input
This configuration can only be used for 2U chassis size CPS100 models rated at 1500W or
less and only in locales where the single phase grid voltage is 200Vac ~ 240Vac, e.g. Europe
or Asia.
