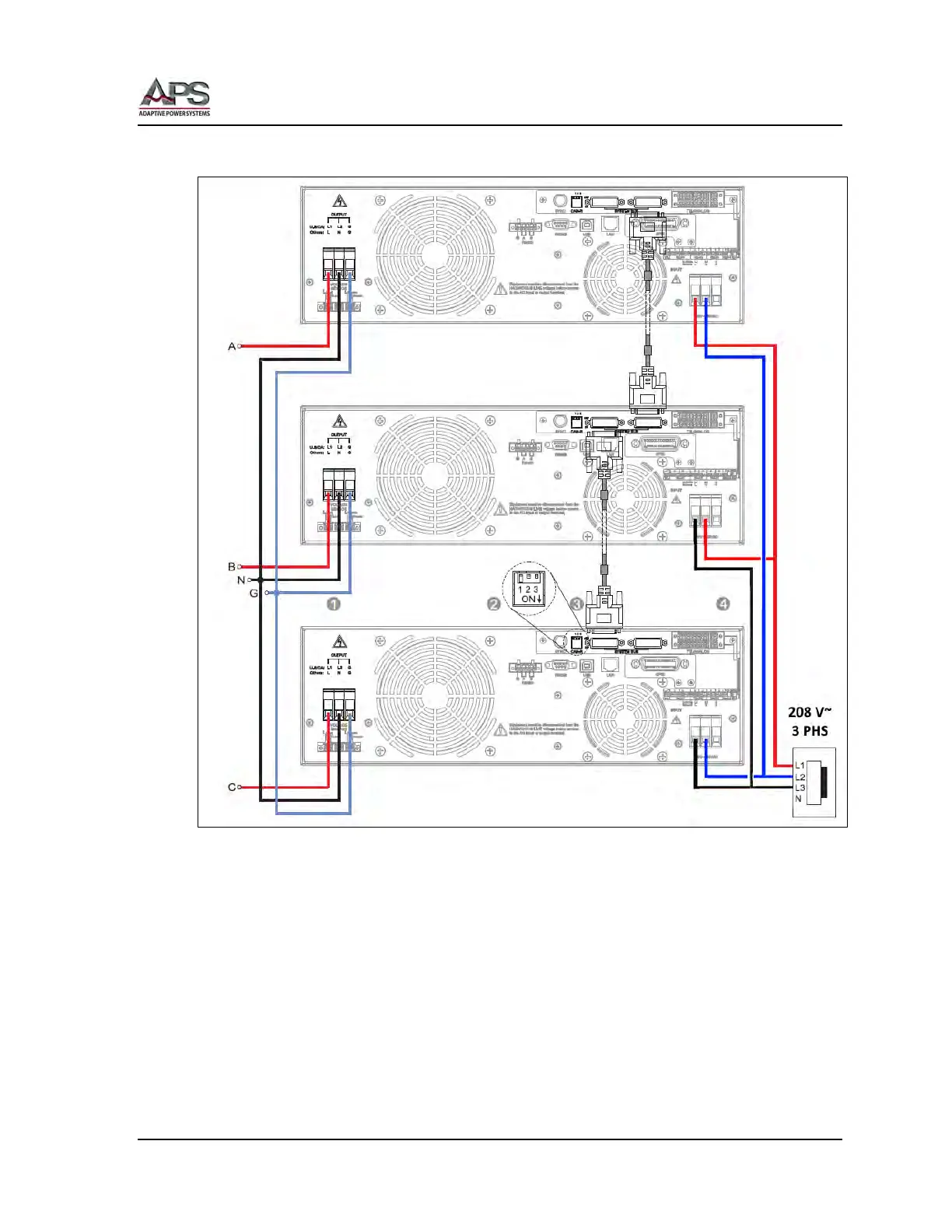

8.5.4.2 3-Phase Mode Wye (5-Wire) Connection Diagram – 208 V~ 3ø AC Input
Call outs:
1. Output Connections- Wye 5 Wire
2. Termination resistor CAN-R, Flip Dip Switch 1 to ON Position (down)
3. System Bus Communication Cable
4. Only supports three-phase five wire connection
