CPS100 SERIES OPERATION MANUAL
SECTION 8:
Master Slave Operation
Entire Contents Copyright 2018 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS.
APS CPS100 Series Power Source Operation Manual Page 186 of 231

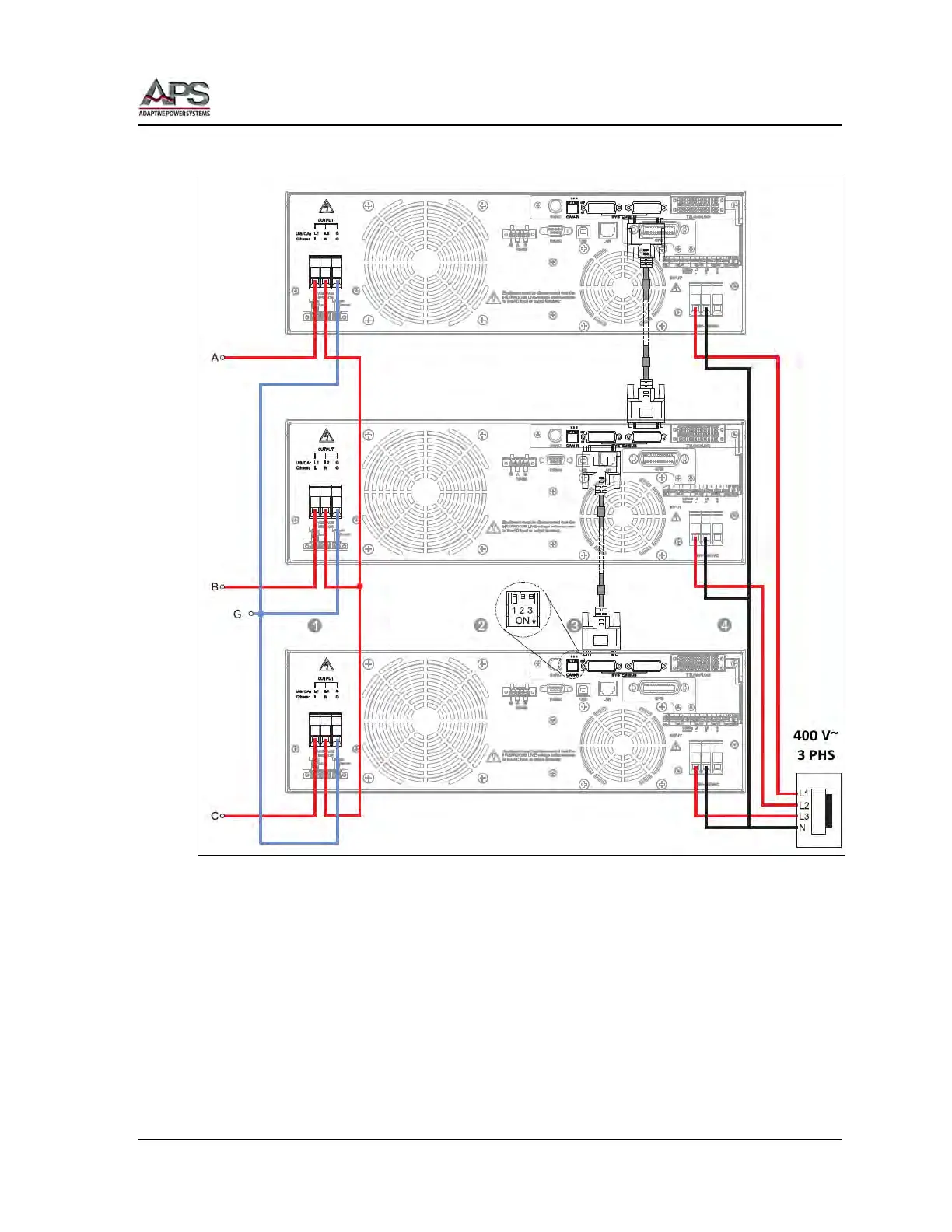

8.5.4.5 3-Phase Mode Delta (4-Wire) Connection Diagram – 400 V~ 3ø AC Input
Call outs:
1. Output Connections- Delta 4 Wire
2. Termination resistor CAN-R, Flip Dip Switch 1 to ON Position (down)
3. System Bus Communication Cable
4. Only supports three-phase four wire connection
