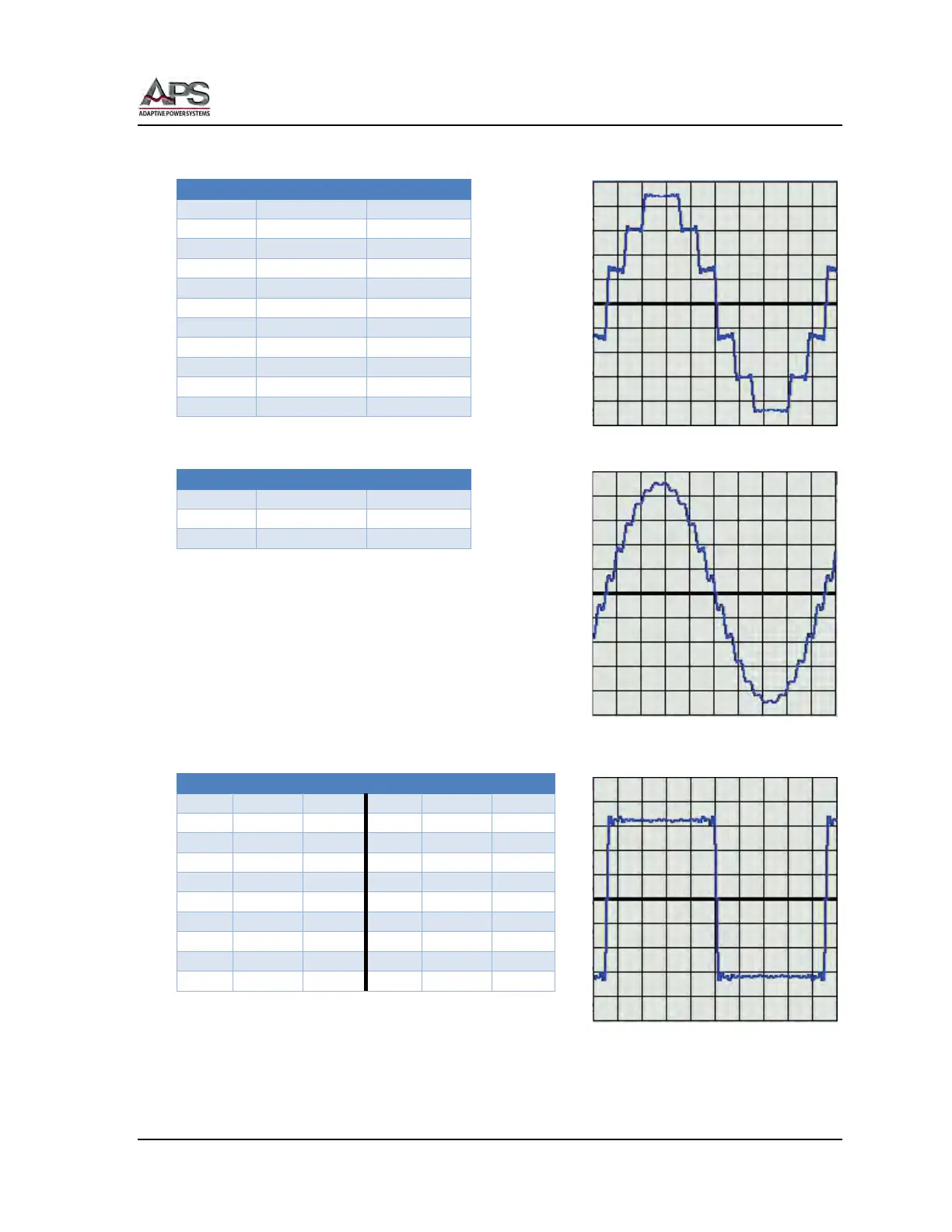

12.2.26 FIXED Waveform No 25
Harmonic
% Ampl
Phase
5
3.41
0
7
2.55
0
11
9.22
0
13
7.68
0
17
0.90
0
19
0.90
0
23
3.88
0
25
3.56
0
31
0.50
0
35
2.34
0
37
2.21
0
12.2.27 FIXED Waveform No 26
Harmonic
% Ampl
Phase
21
1.24
0
23
4.91
0
25
2.21
0
12.2.28 FIXED Waveform No 27
Harm
% Ampl
Phase
Harm
% Ampl
Phase
3
33.39
0
23
4.00
0
5
20.01
0
25
3.49
0
7
13.76
0
27
2.91
0
9
10.70
0
29
2.45
0
11
8.39
0
31
1.94
0
13
7.06
0
33
1.95
0
15
5.85
0
35
1.91
0
17
4.86
0
37
1.89
0
19
4.86
0
39
1.83
0
21
4.52
0
