CHAPTER 4, REFERENCE GUIDE
EFD1000 PFD Pilot’s Guide
Page 4-20 A-01-184-00 REV B
EFD1000 PFD Pilot’s Guide
EFD1000 PFD Pilot’s Guide
The ARC CDI mode uses a xed, non-rotating CDI indicator, resembling a contemporary
GPS navigation deviation display. The ARC CDI Compass mode is intended to maximize
the lower display area for basemap and ight plan data (Figure 4-35).
Select ARC CDI/HSI Compass Mode
1. Push the MENU key. The Menu displays on the Navigation Display.
2. Rotate the Right Knob counterclockwise until Page 1 of the Menu displays
(Figure 4-36).
3. Push the ARC MODE Menu Key (Key 4). The menu label turns magenta and
the EDIT VALUE label displays above the Right Knob (Figure 4-37).
4. Rotate the Right Knob to select either HSI or CDI (Figure 4-38).
5. Push the MENU key to exit the Menu.

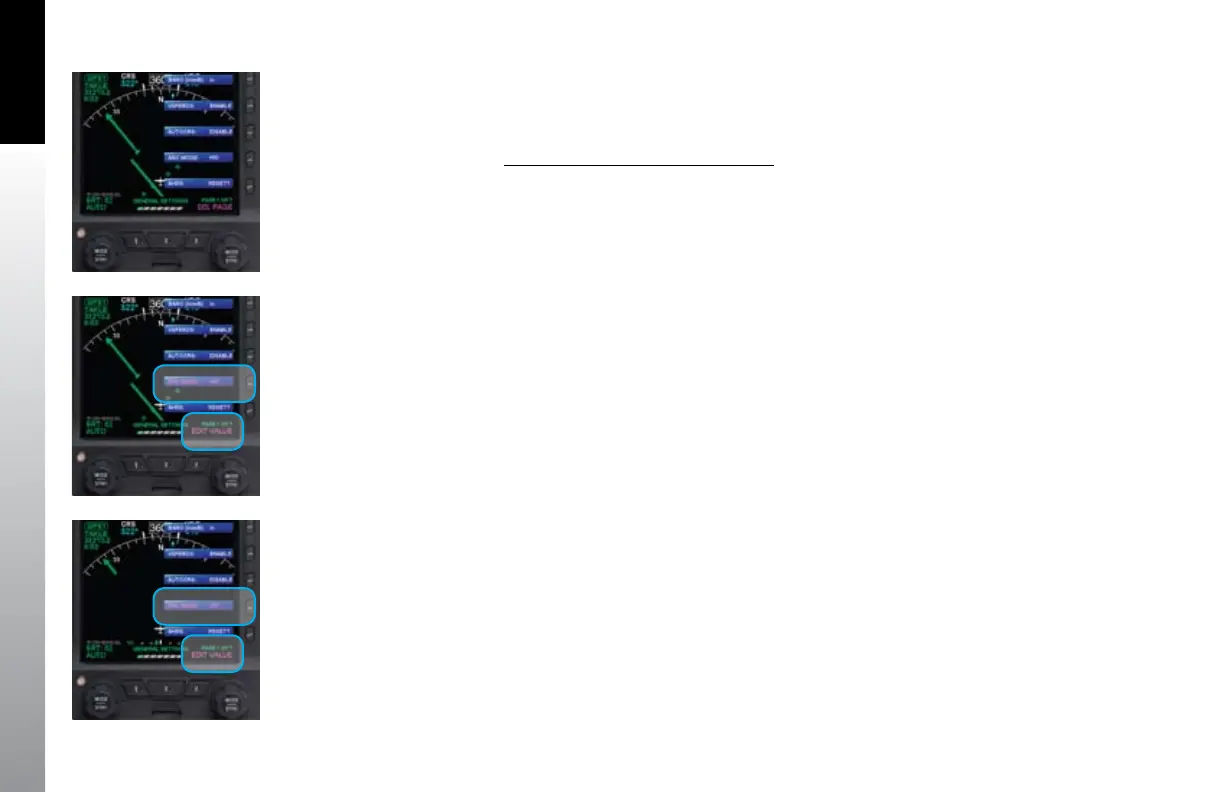

Figure 4-37
Editing ARC MODE
Figure 4-38
CDI ARC MODE Selected
Figure 4-36
GENERAL SETTINGS, Page 1 of 7
