2.2.1.3. SYNC Function
Control Knob SYNC Function (Figure 2-3)
1. Repeatedly press the control knob until the control knob label shows the
value you want to set in magenta.
2. Press and hold the control knob for approximately one (1) second to
synchronize the setting according to the rules shown in Table 2-2.
3. After 10 seconds of inaction, the knob reverts to its Home state (CRS or HDG),
and the labels and eld are shown in cyan (inactive).
Right Knob
SYNC Action
1
ALT Bug and alerter are set to the current altitude.
2
MIN Set to the current altitude.
3
BARO Set to 29.92 InHg or 1013 mB.
4
HDG Set to the current heading.
5
Right Knob - Current Field Label
[HDG] (cyan indicates eld is inactive)

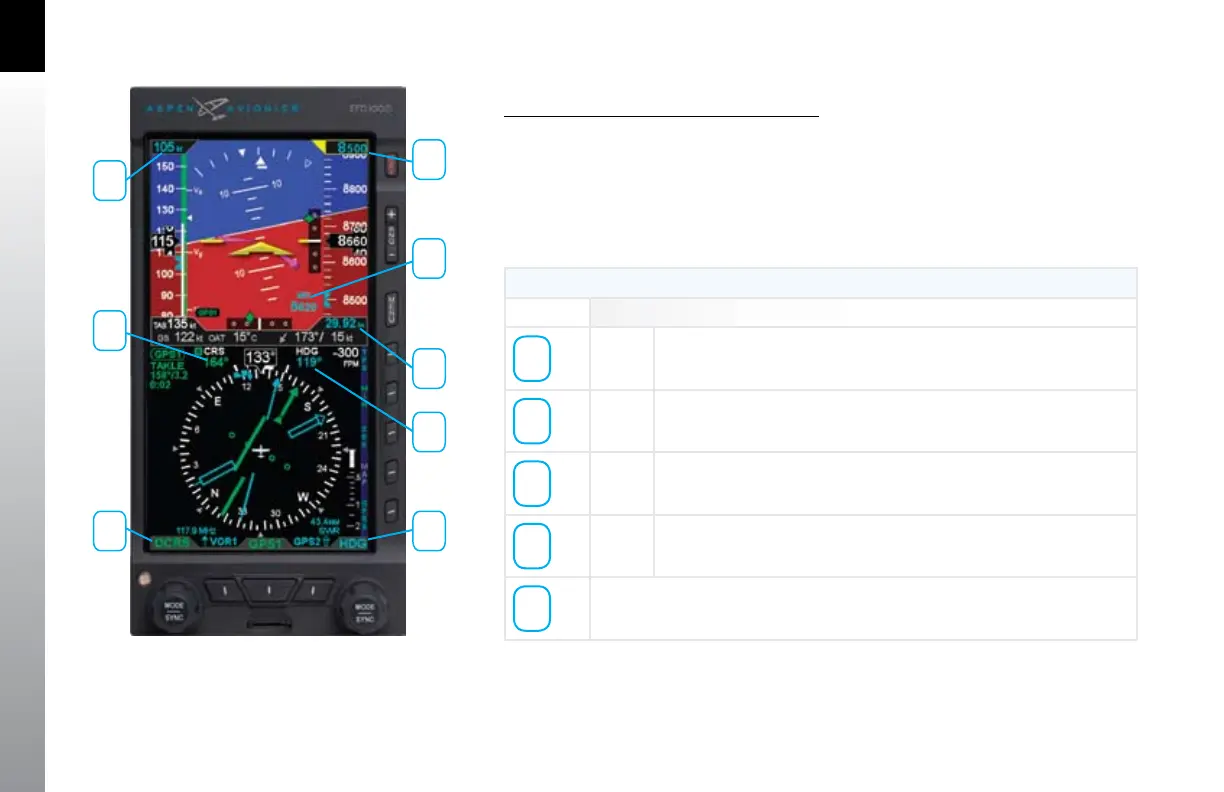

Figure 2-3
Left and Right Knobs and
Corresponding Fields
1
2
3
4
5
6
7
8
