4.3.12.1. Basemap Display and Range
To turn the basemap on or o, the pilot selects one of the feature display levels as
described in Section 5.2. The default feature display level is HIGH. The map range
displays so that the outside radius of the compass represents 2.5, 5, 10, 15, 20, 30, 40,
60, 80, 100, or 200 nautical miles from the aircraft ownship symbol. The default range is
15 NM. Both the feature display level and range are pilot-adjustable.
Display Basemap
Push the MAP Hot Key (• Figure 4-84) to cycle through and select the desired
feature display level (Figure 4-85).
NOTE
If connected to a GPS system that does
not provide compatible Basemap
data, then only OFF and FP ONLY
display levels are available.

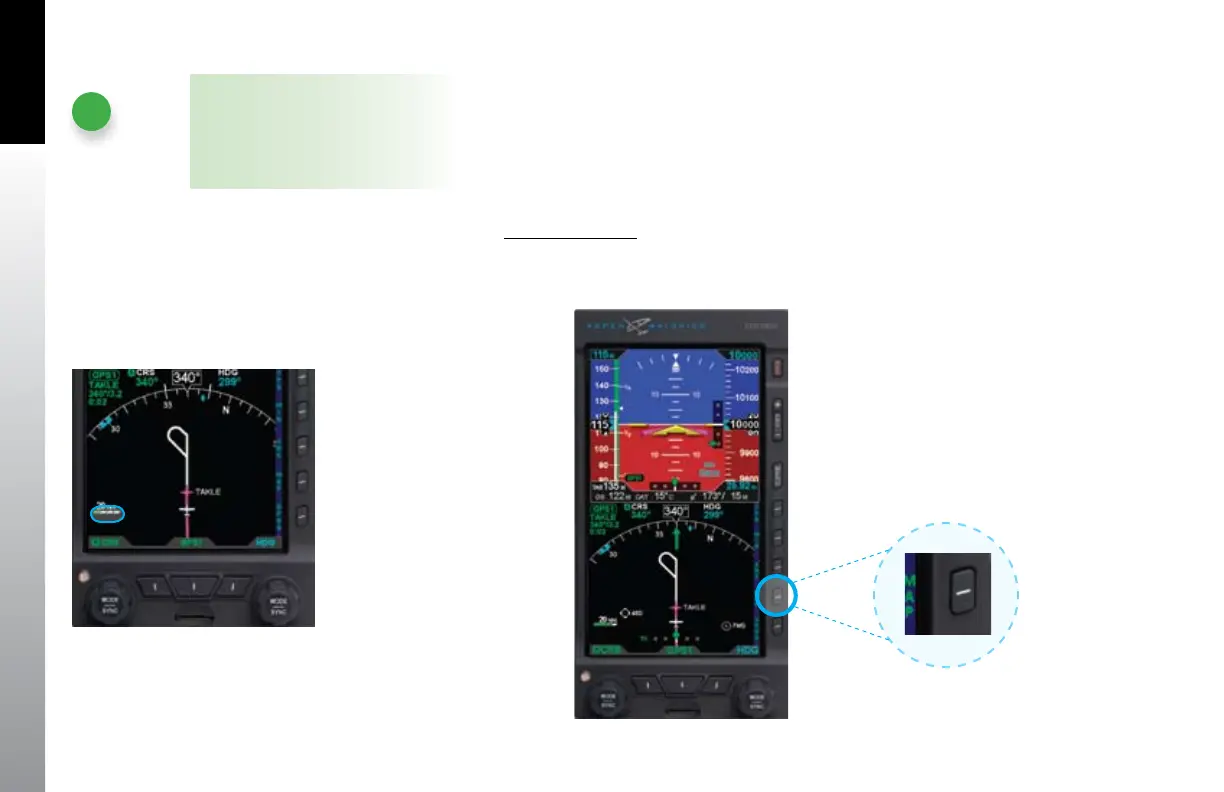

Figure 4-84
MAP Hot Key
Figure 4-85
New Map Display Level
