2.2.4. Menu Key
The MENU Key is used to access the EFD1000 PFD’s Menu system for changing options,
and also to change the EFD1000’s LCD brightness controls.
2.2.4.1. Using the Menus
Press the MENU Key to activate the Menu system (Ref. 3). The current Menu Page
Name displays in the lower center of the Navigation Display. Directly below the Menu
Page Name is a segmented menu page bar, giving a graphical representation of the
current page relative to the total number of menu pages. The current menu page
number displays in the lower right of the Navigation Display.
Menu Page 1, General Settings, is the one most commonly used in ight. It enables
the pilot to enable or disable AUTO COURSE SELECT mode, to display or hide the V-
speeds on the airspeed tape, and to choose the type of CDI display for ARC mode. The
other menu pages are used for V-speed and map customization, for abnormal power
management, and for displaying product version information.
The Menu system operates either in Navigation or Edit mode, as indicated by the label
directly above the Right Knob. When the MENU key is rst pressed, the Menu system is
in Navigation mode, indicated by the magenta label SEL PAGE directly above the Right
Knob (Figure 2-15). When in Navigation mode, rotating the Right Knob navigates
through the menu pages. Rotate the Right Knob clockwise to advance to the next
menu page. Rotate the Right Knob counterclockwise to return to previous menu page.

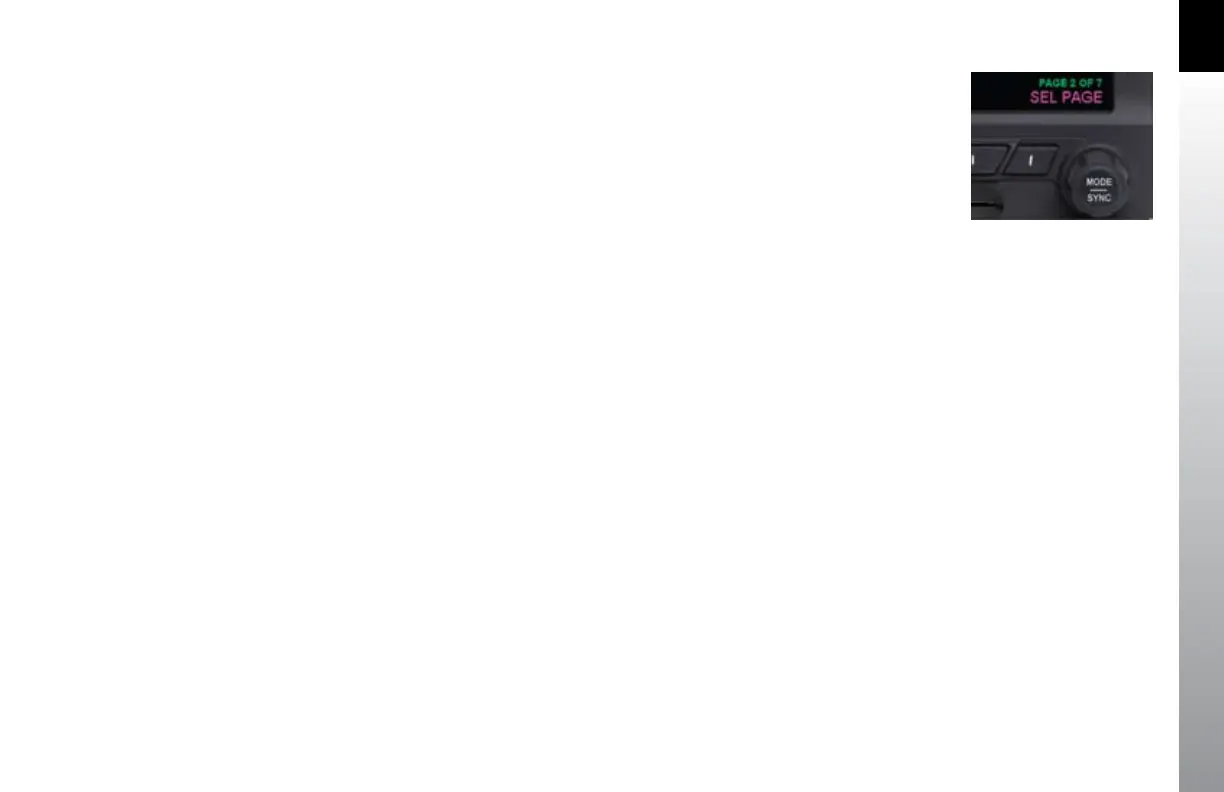

Figure 2-15
Menu Navigation Mode
To Next Page
