4.1.2. Airspeed Indicator
The airspeed indicator is comprised of a moving tape, airspeed bug, and numerical
airspeed value (drum). Textual V-speeds, color Speed Bands, and Speed Markers are also
rendered on the moving tape (Figure 4-5).

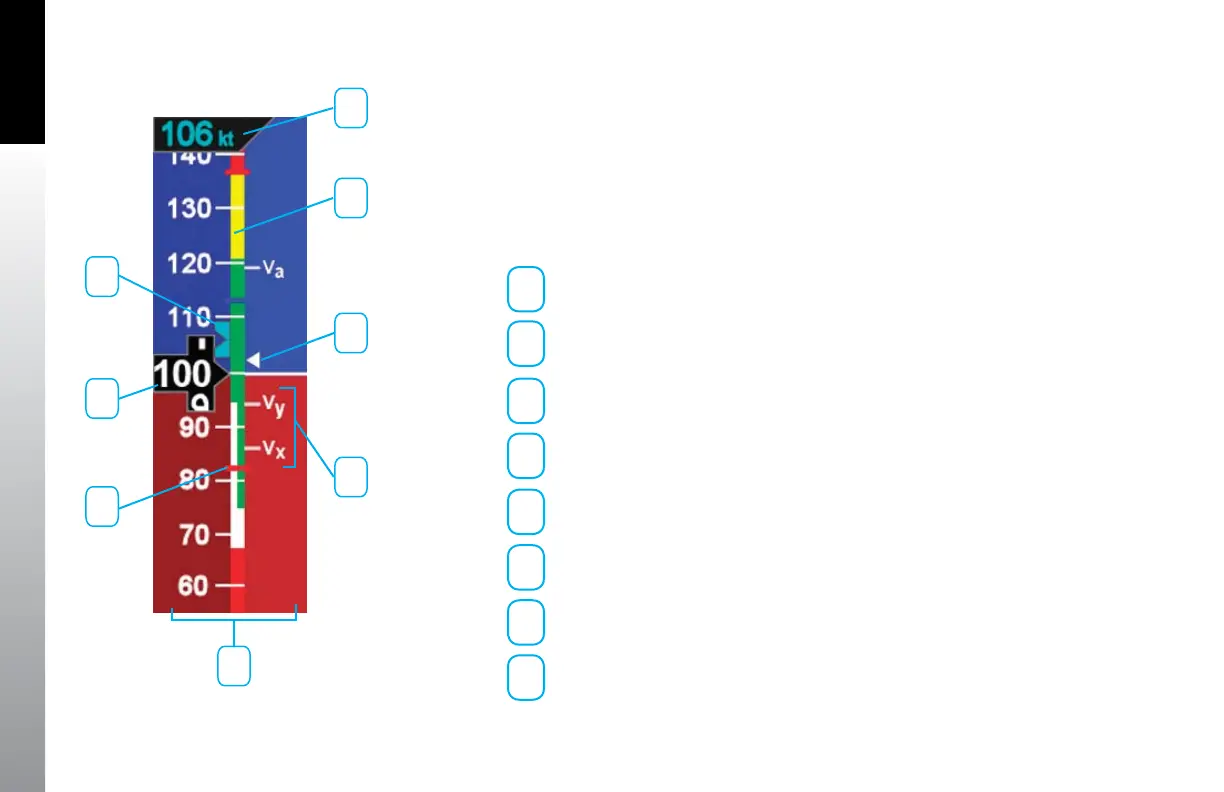

Figure 4-5
Airspeed Indicator
1
Selected Airspeed
2
Color Speed Bands
3
Initial Flap Extension Speed Marker
4
Textual V-speeds
5
Airspeed Tape
6
Speed Markers
7
Numerical Airspeed Value (drum)
8
Selected Airspeed Bug
1
2
3
4
5
8
7
6
