Aspen Avionics Evolution EFD1000 PFD - View External Power Status; View External Voltage Status; View Internal Battery Status

EFD1000 PFD Pilot’s Guide
CHAPTER 6, EMERGENCY AND ABNORMAL PROCEDURES
EFD1000 PFD Pilot’s Guide
EFD1000 PFD Pilot’s Guide Page 6-5A-01-184-00 REV B
View External Power Status
1. Push the MENU Key. The Menu displays on the Navigation Display.
2. Rotate the Right Knob until Page 6 of the Menu displays.
3. The EXT PWR Menu Key (Key 2, Figure 6-7) displays whether the EFD1000 is
operating on external power (EXT PWR).
4. Push the MENU key to exit the Menu.
View External Voltage Status
1. Push the MENU Key. The Menu displays on the Navigation Display.
2. Rotate the Right Knob until Page 6 of the Menu displays.
3. The EXT PWR Menu Key (Key 4, Figure 6-8) displays the external power
voltage.
4. Push the MENU key to exit the Menu.
View Internal Battery Status
1. Push the MENU Key. The Menu displays on the Navigation Display.
2. Rotate the Right Knob until Page 6 of the Menu displays.
3. The BAT Menu Key (Key 5, Figure 6-9) displays the current battery status as a
percentage of charge and estimated operating time available (##%/## MIN).
4. Push the MENU key to exit the Menu.
NOTE
When airborne, if the EFIS input voltage is below the 12.8V (14V Electrical
System) or 25.6V (28V Electrical System) automatic battery transition
threshold, and “EXT PWR” is selected, the EFD will automatically transition
back to its internal battery.

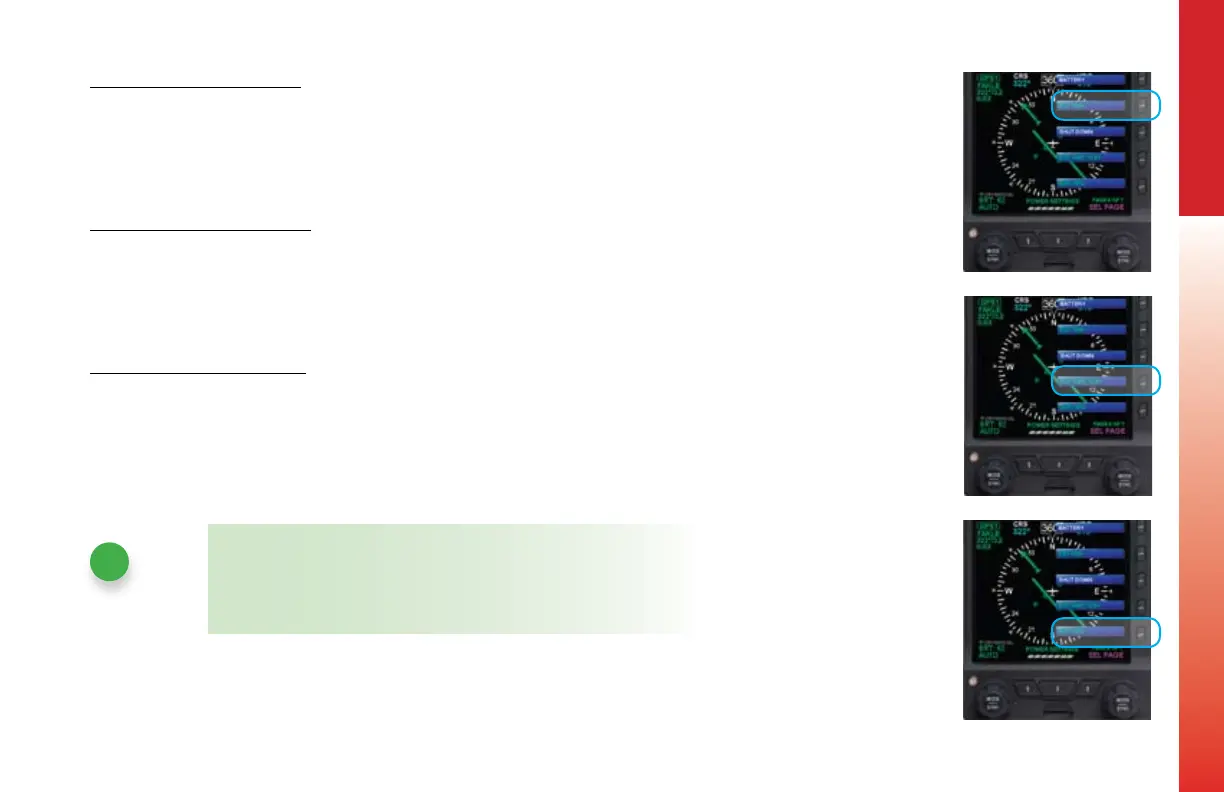

Figure 6-7
Menu, POWER SETTINGS,
Page 6 of 7,
EXT PWR Menu Key (Key 2)
Figure 6-8
Menu, POWER SETTINGS,
Page 6 of 7,
EXT PWR Menu Key (Key 4)
Figure 6-9
Menu, POWER SETTINGS,
Page 6 of 7,
BAT Menu Key (Key 5)
