EFD1000 PFD Pilot’s Guide
CHAPTER 3, FLYING THE EFD1000 PRO PFD
EFD1000 PFD Pilot’s Guide
EFD1000 PFD Pilot’s Guide Page 3-11A-01-184-00 REV B

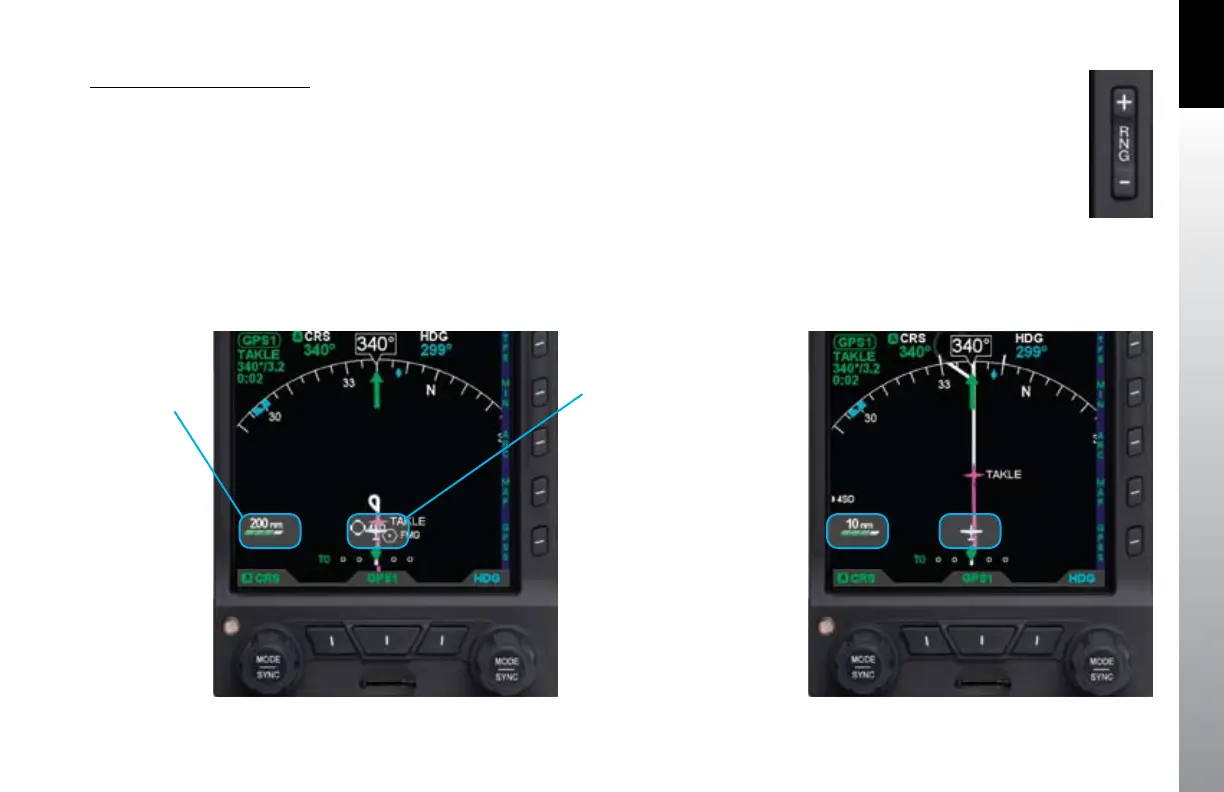

Change The Basemap Range
Press the Range key (• Figure 3-15) UP (+) to increase the range, or
DOWN (-) to decrease the range, until the desired range is reached
(Figures 3-16 and 3-17).
Figure 3-16
Current Range 200NM from
Ownship to Edge of Compass
Figure 3-15
Range Key
Current Range
Ownship
Symbol
Figure 3-17
Current Range 10NM from
Ownship to Edge of Compass
