4.3.11. Rate of Turn Indicator
The Rate of Turn Indicator consists of a curved white line originating from the
corresponding side of the aircraft heading (i.e., a left turn indication starts on the left
side of the index mark), and extends in the direction of the turn along the outer radius
of the compass scale. The turn rate indication is provided for every compass mode, 360°
(Figure 4-80) and ARC (Figure 4-81).
The Rate of Turn Indicator features tick marks for full and half-standard rates of turn (a
standard rate of turn = 3° per second) in both directions.
The Rate of Turn Indicator has a range of 0° – 6° per second. When the turn rate exceeds
6° per second, an arrowhead is added to the end of the tape to show that the rate of
turn has exceeded the limits of the instrument.
NOTE
All map and ight plan elements are
received from the GPS and are only
available from compatible GPSs (e.g.,
GNS 430, GNS 530).

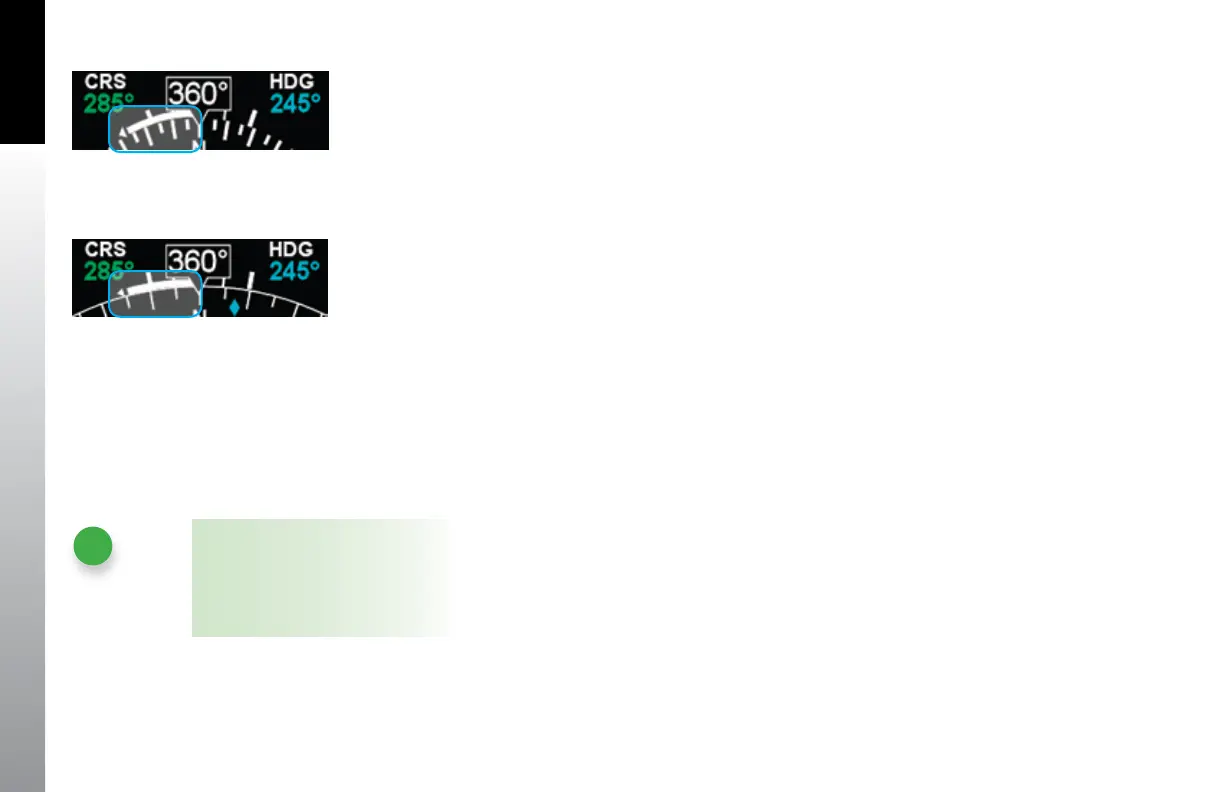

Figure 4-80
Rate of Turn Indicator (360° Compass Mode)
Figure 4-81
Rate of Turn Indicator (ARC Compass Mode)
