CHAPTER 2, CONTROLS AND DISPLAY
EFD1000 PFD Pilot’s Guide
Page 2-12 A-01-184-00 REV B
EFD1000 PFD Pilot’s Guide
EFD1000 PFD Pilot’s Guide
HOT KEY DESCRIPTION OPTIONS
1
TPS
Displays or hides air data tapes
(airspeed and altitude)
1
(see
Section 4.1).
TPS Tapes displayed
TPS Tapes hidden
2
MIN
Enables and displays, or disables
and hides, Minimums Alerter (see
Section 4.1.3.4).
MIN
Minimums displayed and
alerter enabled
2
MIN Minimums alerter disabled
3
ARC/
360
Toggles between 360 and ARC
modes of Navigation Display (see
Section 4.3.1).
ARC ARC Compass Mode
360 360° Compass Mode
4
MAP
Selects Map display and feature level
3
(see Section 4.3.12.1).
MAP High (see Figure 2-10)
MAP Medium (see Figure 2-11)
MAP Low (see Figure 2-12)
MAP
Flight Plan Only (see Figure
2-13)
MAP O (see Figure 2-14)
5
GPSS
Toggles between GPS Steering
(GPSS) Mode and HDG mode for
Autopilot/Flight Director
4
(see
Section 4.6.1).
GPSS GPSS On
GPSS GPSS O, HDG mode active
Available only in those installations where the original airspeed indicator and altimeter remain in their primary ight instru-1.
ment positions.
When Minimums display and alerting is initially enabled, the minimums value is immediately selected for editing.2.
Flight plan legs and waypoints display available in all installations including a GPS navigator. Base map display of nearby 3.
waypoints available with all ARINC 429 GPS navigators and some RS-232 GPS navigators.
GPSS available only with ARINC 429-based navigators.4.
Figure 2-10
Map Level HIGH
Figure 2-11
Map Level MEDIUM
Figure 2-12
Map Level LOW
Figure 2-13
Map Level FP ONLY
Figure 2-14
Map Level OFF

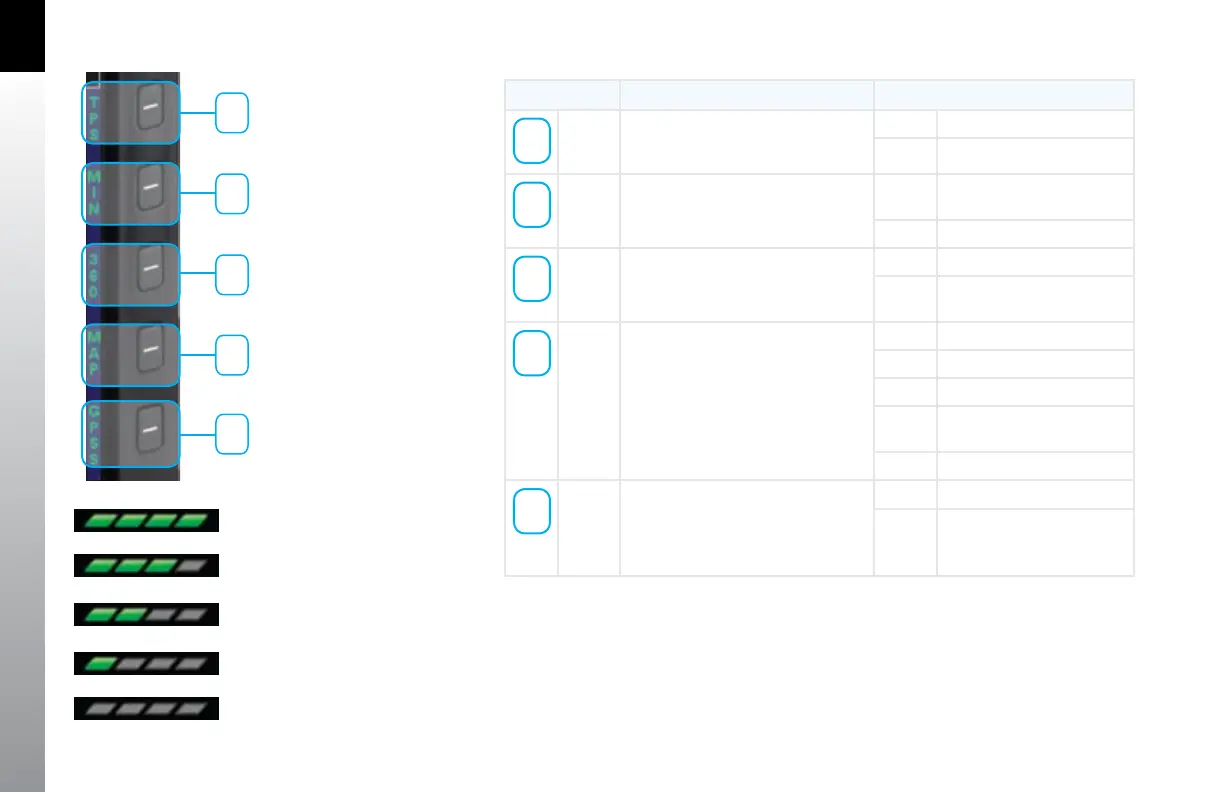

Figure 2-9 Hot Keys
Table 2-3 Hot Key Description
5
4
3
2
1
