Version 3.0.1 103 July 2010
MP-20x Telephone Adapter 9. LAN Wireless Connection
c. Click OK; a new virtual device appears in the 'WDS List' table, with the initial
status of disabled.

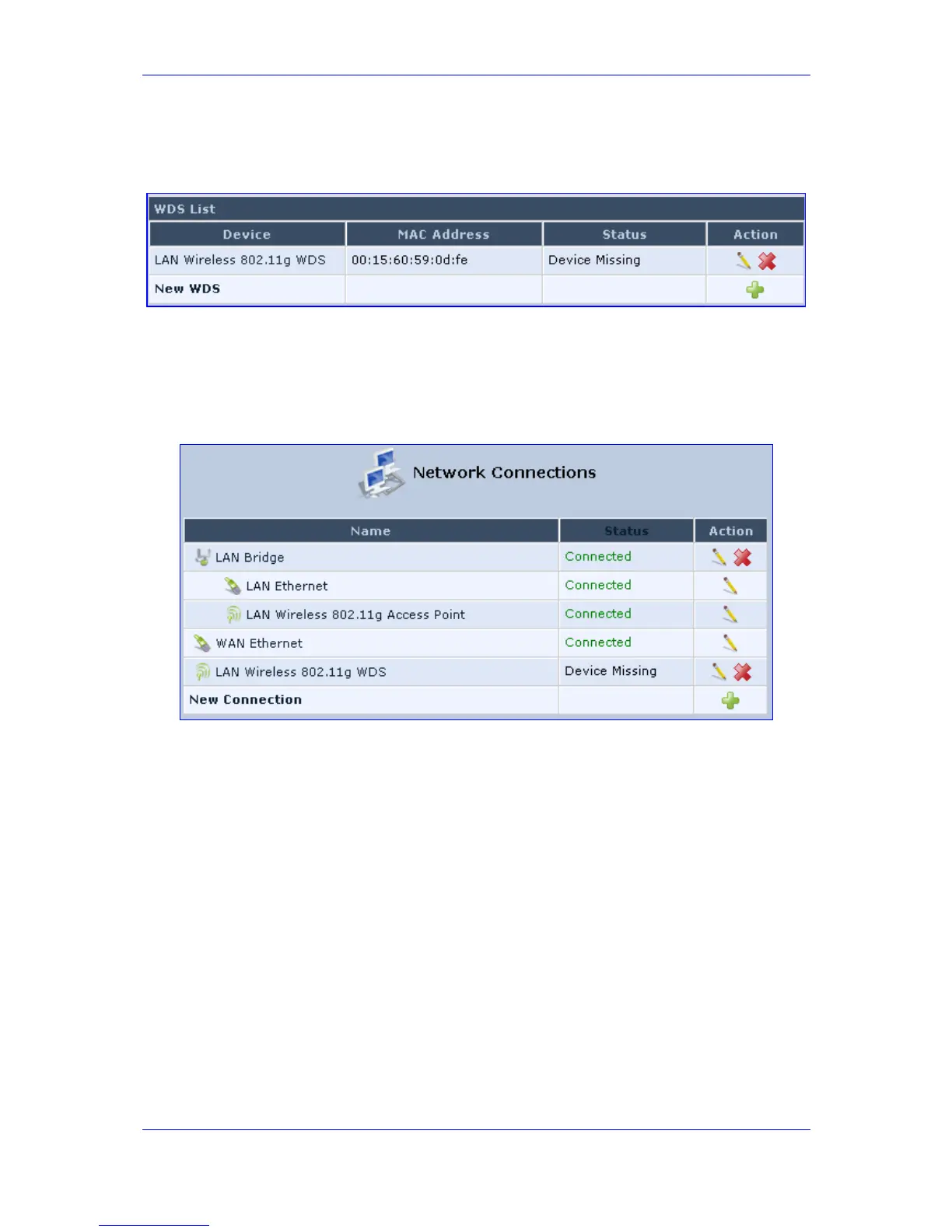

Figure 9-22: New WDS in WDS List Table
Note that devices added to the 'WDS List' table before the WDS feature is
enabled in the main device appears as missing.
d. Click OK; the new virtual 'LAN Wireless 802.11g WDS' connection is listed In the
'Network Connections' screen (Network Connections menu).
Figure 9-23: LAN Wireless 802.11g WDS Properties Screen
e. Click the virtual connection's Edit icon; the 'LAN Wireless 802.11g WDS
Properties' screen reappears.
f. Click the Enable button; the virtual connection is now enabled.
If the WDS peer also operates in 'Restricted' mode, it should similarly be configured with
MP-20x's MAC address for both access points to communicate.
