MP-20x Telephone Adapter 184 Document #: LTRT-50609
User's Manual
a. Enter a 'Service Name' and then click 'New Server Ports'. Select a protocol and
then enter the protocol number.

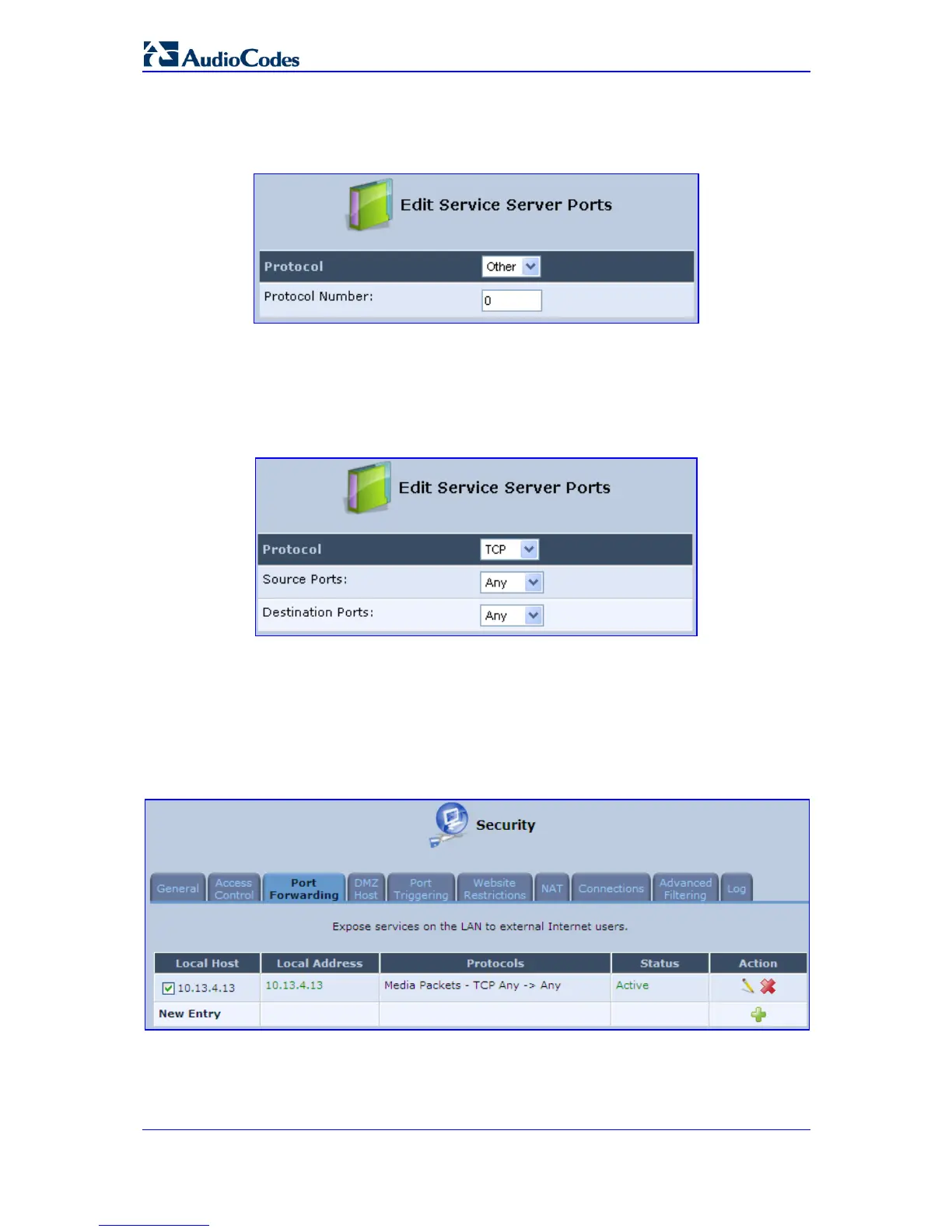

Figure 13-8: Add a Specific Protocol
6. If you specify a listed protocol, you can select the port to forward the packets. By
default, MP-20x forwards traffic to the same port as the incoming port. To redirect
traffic to a different port, select the option 'Specify'; the screen refreshes and an
additional field appears, enabling you to enter the port number:
Figure 13-9: Add Specific Ports
7. To define the time period during which this rule takes effect, select The in the drop-
down list 'Schedule' between 'Always' or a specific schedule. If you choose the option
'User Defined', the screen refreshes and the 'Edit Scheduler Rule' screen appears.
8. Click OK to save your changes; the screen 'Port Forwarding' displays a summary of
the rule that you just added.
Figure 13-10: Port Forwarding Rule
